Molex 146168-0001 Patch SMT Antenna, GPS, Антенна

Molex SMT Ceramic GPS Antenna

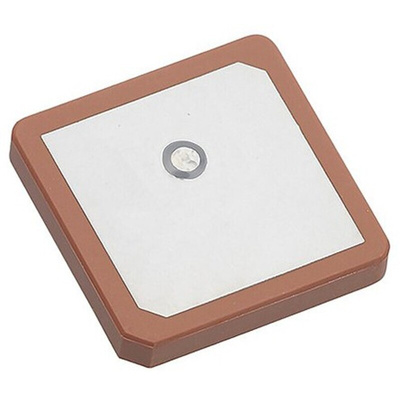

RHCP (Right Hand Circularly Polarized) SMT ceramic GPS antenna with PCB space saving design. This ceramic GPS antenna can be easily and cost effectively integrated into various wireless navigation device applications. The antenna has a patch design which helps achieve the highest gain from the antenna when placed on the horizontal plane of the PCB. A double-sided adhesive pad secures the GPS antenna to the PCB and a silver pin positons and fixes the antenna to the PCB. This silver pin also provides an electrical contact between the antenna and the board.

Features and Benefits

• PCB space saving design
• Easy and cost effective integration into wireless navigation applications
• High gain when mounted on horizontal plane of PCB
• Double-sided adhesive pad for securing to PCB
• Silver pin for PCB positioning and electrical contact

Product Application Information

These Ceramic SMT GPS Antennas are suitable for use in a wide range of wireless applications. Applications include those in the automotive, commercial vehicle (agricultural and rail), commercial aviation and consumer industries. Industrial applications include maritime port management systems, surveying and mapping systems and emergency response systems.
