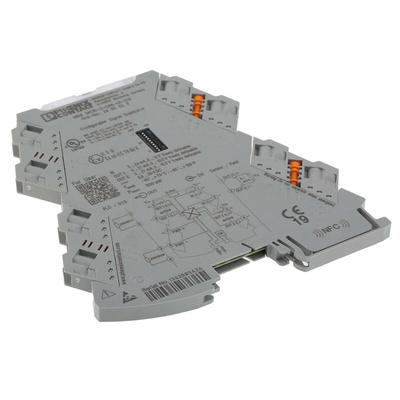

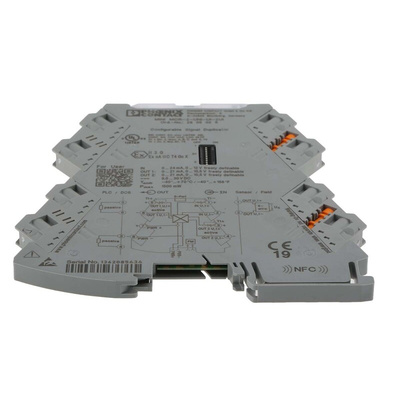

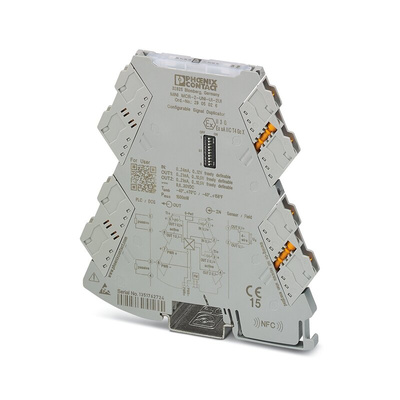

2905026, Phoenix Contact MINI MCR Series Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 24V dc Supply, ATEX

Phoenix Contact Signal Conditioner, 4-Way Signal Duplicator, Freely Adjustable Inputs and Outputs - MINI MCR-2-UNI-UI-2UI - 2905026

When you need to process signals for use in your control network, turn to this versatile signal conditioner from Phoenix Contact. It takes analogue inputs of 0 to 24mA and 0 to 12V and converts them into two outputs of 0 to 21mA and 0 to 10.5V, which deliver compatible signals to the next layer in your system. As you can set the output channels to different voltages and currents, it's possible to tailor the unit to meet your needs.
A wide operating temperature range between -40°C and +70°C means this hardy device holds its own in harsh work areas. It's designed for mounting on a DIN rail to ensure installation is speedy and straightforward. You'll find it commonly used to support instrumentation and industrial automation.

Features & Benefits

• Configurable using free software, so it's a user-friendly piece of kit
• Accepts rigid and flexible conductors in a broad cross-section range between 0.14 and 2.5mm² for versatility
• Coloured LED indicators allow for diagnostic and status monitoring
• IP20 rating indicates it's touch-proof and protected against small tools over 12mm
• Mountable in any position to slot easily into your system
