2901995, Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Current Output, 9.6 → 30V dc Supply, ATEX

MINI MCR - Loop-powered Isolators

MINI MCR series passive isolators with 2 channels, for the electrical isolation of current signals without auxiliary power.

Spring-cage connection
Auxiliary voltage not required
Supplied by an input loop
Highly-compact 2-wire passive isolators for electrical isolation and filtering of standard analog signals

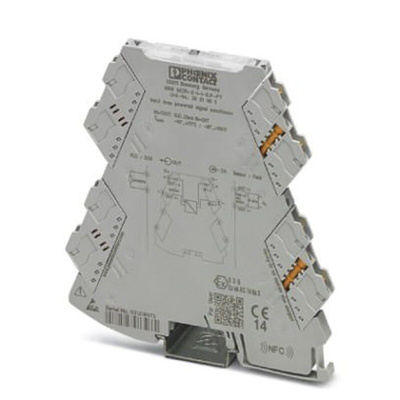

Phoenix Contact Signal Conditioner, 9.6 to 30V DC - MINI MCR-2-I-I-ILP-PT - 2901995

This signal conditioner from Phoenix Contact provides interference-free signal transmission. As a passive isolator, it doesn’t require its own power source, and it ensures safe isolation from field to network without auxiliary power for convenient use. The device has a single-channel input that can provide isolation to two separate channels at the same time, making it a versatile choice.
The device is designed for use with limit value switches from the MINI MCR series, making it simple to set up a complete switching system. An IP20 (ingress protection) rating means it's touchproof to protect you from active electrical currents. Its light weight of 52.2g makes it simple to install and adjust, and its slim dimensions of 110.5 (height) x 6.2 (width) x 120.5mm (depth) mean it slots easily into a compatible terminal on your DIN rail.

Features & Benefits

• ATEX hazardous area certification for use in potentially explosive environments
• Push-in connection method for simple and secure installation
• Wide operating temperature range of -40°C to +70°C for use in extreme conditions
• Maximum transmission error of 0.1% of the final value for consistently precise readings
