2905249, Phoenix Contact MINI MCR Series Signal Conditioner, Thermocouple Input, Current, Voltage Output, 9.6 → 30V dc

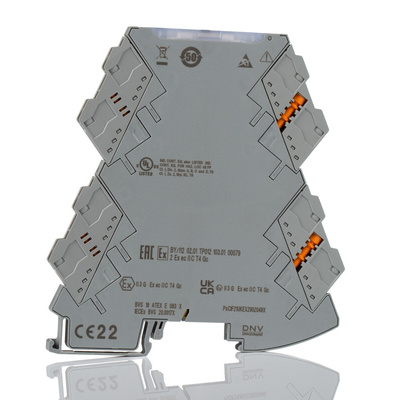

Phoenix Contact Signal Conditioner, DIN Rail Mounting, IP20 Rating - MINI MCR-2-TC-UI-PT - 2905249

This signal conditioner from Phoenix Contact converts electronic signals into linear, adjustable current or voltage signals ready for processing by your instrumentation devices. It's a temperature transducer, so it connects to your thermocouple sensors to help you achieve accurate temperature measurements.
Simple push-in technology means connection and disconnection is quick and easy. As you can snap the unit onto a standard DIN rail with no need for tools, you get fast and secure installation in industrial setups.

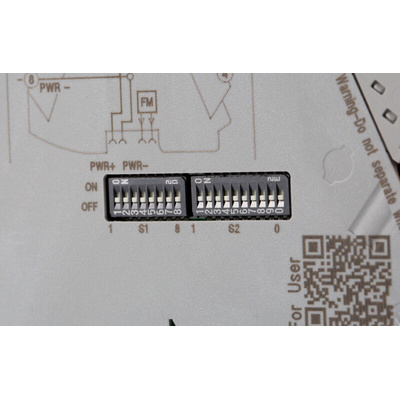

This versatile product is compatible with commonly used software packages, so various control and automation options are available. There's also a DIP switch on the back that you can use to create default settings.

Features & Benefits

• Supports NFC technology so you can work wirelessly
• Withstands ambient temperatures between -40°C and +70°C for efficient performance in harsh environments
• ATEX certified, so safe to use in potentially explosive atmospheres
• Isolation via insulation according to IEC 61010-1 helps protect you and your equipment against harmful electrical surges
• Final value deviation of just 0.06% so your results aren't significantly affected by EMI

Datasheet

Line Drawing - 2905249

Manual - 2905249

Application Note - 2905249

Instruction Sheet - 2905249
