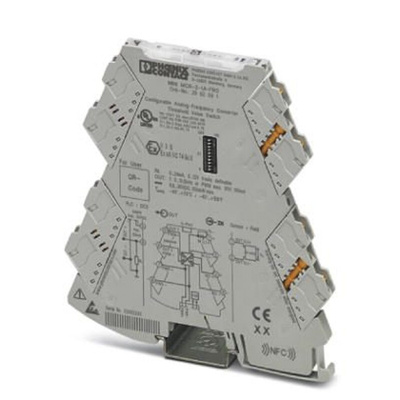

2902031, Phoenix Contact MINI MCR Series Signal Conditioner, Current, Voltage Input, Frequency Output, 24V dc Supply

MINI MCR - Frequency Transducers

Phoenix contacts 2902056 is a universally, 3-way configurable frequency transducer designed for converting PWM and frequency signals into a standard signal. This module can process inputs from 0mA – 24mA and an input voltage of 0V – 12V, while outputting 0mA – 21mA and an output voltage of 0V – 10.5V. The 2905056 has plug-in technology to allow for an easier setup and is approved with an ATEX zone-2 installation rating.

The module can be configured with the easy to access DIP switch on the side to change default parameters.

Features and benefits:

• Freely adjustable input and output


• ATEX Zone-2 installation (nA)


• NPN, PNP, MANUR and frequency signals – 0.002 Hz up to 200kHz


• Conversion of frequency and PWM signals into an analog format


• Reinforced insulation in alignment with IEC 61010-1


• Supply voltage from 9.6 V DC to 30 V DC

Applications:

• Electrical isolation


• Conversion


• Amplification of filtering of frequency and PWM signals


• NAMUR proximity sensors


• NPN and PNP output sensors

Accessories:

TBUS Din rail connector – 489-2825
USB Programmer (S-PORT) – 801-6107
