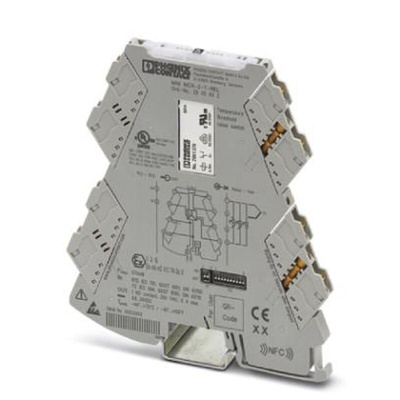

2905632, Phoenix Contact MINI MCR Series Signal Conditioner, RTD, Thermocouple Input, Relay Output, 24V dc Supply, ATEX

Phoenix Contact Signal Conditioner, 250V AC Maximum Switching Voltage Rating, -250°C to +2,500°C Temperature Measuring Range - MINI MCR-2-T-REL - 2905632

React to your system's changing temperatures in a flash with this signal conditioner from Phoenix Contact. It switches its relay when a sensor's readings pass a set point, automatically notifying a control device to kickstart connected gear. As it interprets readings to a ±0.1% accuracy, the device only switches when needed to keep its process running smoothly. Linking it up with instruments is simple thanks to its support for RTD and thermocouple sensors. An adjustable delay between 0 and 10s means setting it up to ignore brief temperature peaks is no trouble.
There's no need to break out the toolbox to mount the conditioner, as it snaps onto a DIN rail so you get speedy installation. As it's controlled by handy DIP switches, adapting the product to your system is hassle-free. A conductive gold-plated silver alloy contact ensures it reliably sends out switching signals. Thanks to a lifespan of 20 million operations, you can rest assured of long-term monitoring.

Features & Benefits

• Screw terminals to secure wiring against disruptive movement
• Easy-to-read LED indicators for power and faults, making for simple spot-checks
• ATEX-approved for use in hazardous areas
