2909642, Phoenix Contact PCB Mount Power Relay, 24V dc Coil, 10mA Switching Current, SPDT

REL-MR Plug In Power Relay

Phoenix Contact REL-MR industrial series of plug in miniature power relays.

Features and Benefits

• SPDT contact
• Coil voltages 12 to 60 V dc
• Yellow LED indicator

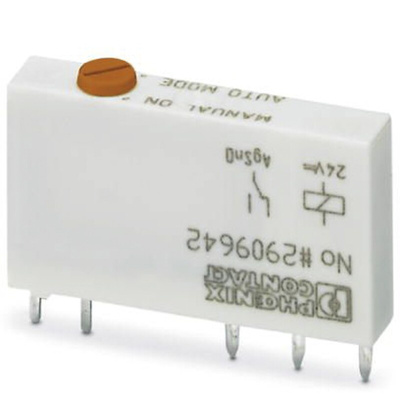

Phoenix Contact Power Relay, PCB Mounting, 24V DC Voltage Rating - REL-MR- 24DC/21/MS - 2909642

Need a reliable way to open and close a circuit on your programmable logic controller? Get switched on with this power relay from Phoenix Contact. The bright orange dial features a clear marker that you twist to point to your desired position. The device uses SPDT contact configuration to swap between two options, manual and auto. It's non-latching, so it'll return to auto mode when there's no power flowing through the system.
For easy installation, the relay mounts onto your printed circuit board (PCB) securely with five built-in pins. Its slim dimensions of 28 (H) x 5 (W) x 16mm (D) mean multiple units can be arranged side-by-side, and there's no need for spacing. At a light 4.7g, it won't add unnecessary weight to your setup. This unit has a maximum switching voltage of 250V DC/AC, so it's useful for low-voltage applications including audiovisual equipment, medical appliances and communication devices.

Features & Benefits

• Relay contact is made of silver alloy to maximise electrical conductivity, making this switch an efficient choice
• Wide operating temperature range of -40°C to +85°C means it's unfazed by harsh industrial conditions

Datasheet
