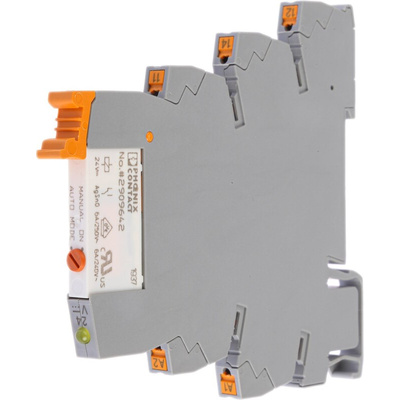

2909667, Phoenix Contact PLC-RPT- 24DC/21/MS Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Phoenix PLC-RPT Series Push In Contact

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

• With the use of a v8 adapter, this relay module offers efficient connection to system cabling


• The module offers safe isolation between the coil and contact


• Functional plug-in bridges


• Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

Phoenix Contact PLC Interface Relay Module, Push-in Terminal, SPDT - PLC-RPT- 24DC/21/MS - 2909667

Switch and control your I/O (input/output) systems with this high-performance relay from Phoenix Contact. It allows for DIN rail mounting to PLCs (programmable logic controllers) used in industrial settings. Its ultra-slim design makes it a space-saving choice.
This miniature relay's plug-in technology allows for quick installation and start-up. It has good resistance to vibration and shock, so there's little chance of the relay coming loose. Thanks to its protective circuit, the component is polarity and surge-protected, meaning it won't be negatively affected by electrical current spikes. Its cabling adapter is designed for rapid and error-free connection of the relay module to your controller.
The unique technology and materials of this relay keep its operating temperature low for enhanced efficiency. Its sealed housing is wash-proof and moisture-resistant.

• Coil voltage of 24 V DC
• Current rating of 9 mA
• Input voltage of 24 V DC
• Input current of 15.3 mA
• Switching current of 10 A
• SPDT (single pole, double throw) contact configuration
• Silver alloy contact material
• 1 pole
• Dimensions of 94 (length) x 80 (height) x 6.2 mm (depth)
• Operating temperature range of -40°C to +60°C
