BARTH Logic Module

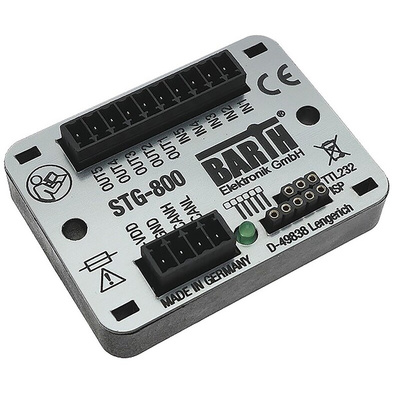

The BARTH STG-800 CAN panel mount Mini-PLC has a powerful 32-bit ARM Cortex core. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The automotive-qualified CAN2.0A/B/CANopen interface can operate in noisy environments and allows the connection of various network components to the Mini-PLC. It has three analogues inputs that can vary from 0VDC to 30VDC. This logic module has four solid-state power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language.

Features and Benefits

Open source programming option
Wide operating voltage that ranges between 7VDC and 32VDC
Operating temperature ranges between -40°C and 70°C
Vibration resistant and rugged sealing
Comprehensive fail-safe functions
Tiny and super flat CAN logic controller
Pulse and frequency counter input is 40μ seconds
TTL-232 3.3V Interface

Applications

Industrial automation
Automotive technology
Maritime technology
Technical education
