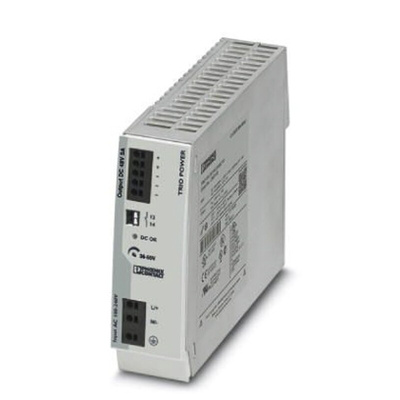

2903159, Phoenix Contact TRIO-PS-2G/1AC/48DC/5 Switch Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc, Блок питания

Phoenix Contact TRIO Single Phase Power Supplies

The range of Trio, single phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages. The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.

The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and Benefits:

• Can be used on networks where the phases become imbalanced


• Withstands up to 300Vac input


• Temperature range -25 to +70°C


• Robust metal housing


• High Electric strength


• Minimize installation costs by using the third negative terminal block as a grounding terminal block


• High MTBF (mean time between failures) of more than 500,000 hours


• High dielectric strength of up to 300 V AC


• Quick installation thanks to a push-in connection


• Slim design


• Input for AC and DC voltage

Typical applications:

Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

Phoenix Contact Switch-Mode DIN Rail Power Supply, 2 Outputs, 240W Power Rating - TRIO-PS-2G/1AC/48DC/5 - 2903159

Safely run your DIN-rail-mounted components with this power supply unit from Phoenix Contact. Thanks to an integrated dynamic boost system, you can use it to start difficult loads with up to 150% of its nominal current. For maximum versatility, the device converts either 100 to 240V AC or 110 to 250V DC and outputs it to 48V DC.
So you can be sure of safety, the unit's terminals are located out of reach of your fingers to prevent accidental contact with any live electrical parts. Consuming just 2.9A of electric current, it's an ideal choice for setups where energy conservation is essential. Thanks to an internal 6.3A fuse, it protects connected components from short-circuits, as well as users from electric shocks. As the PSU delivers up to 240W of power, it's suitable for low-power to medium-power applications, such as switches and routers.

• Light weight of 900g for easy handling during installation and reduced strain on the DIN rail
• Thermoplastic housing for durability and resistance to impact
• Mean time between failures of 2,000,000 hours at +25°C for long-term performance
