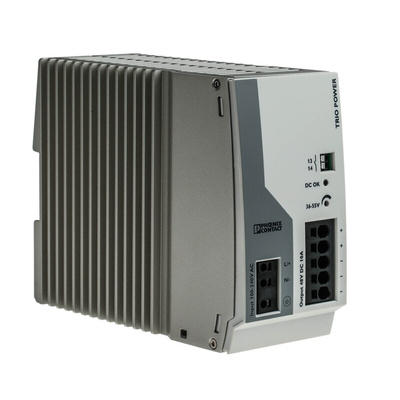

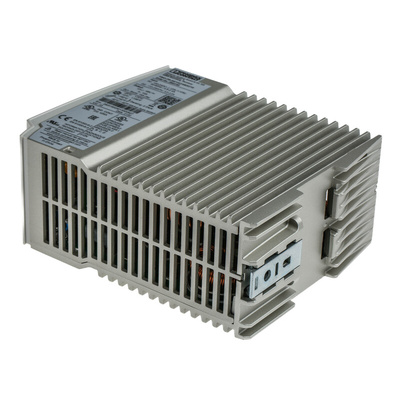

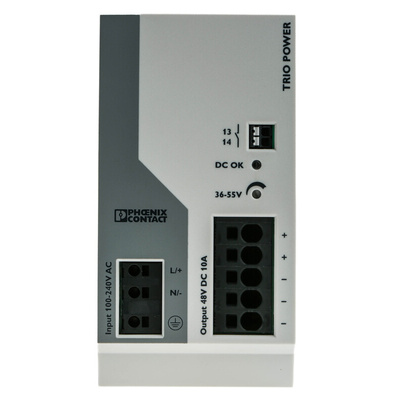

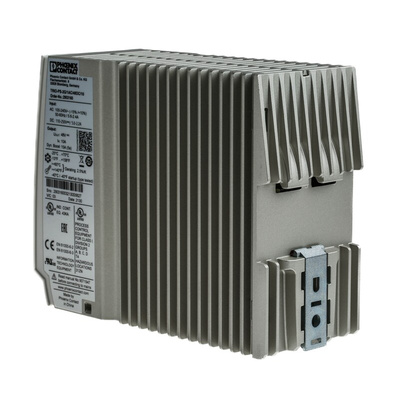

2903160, Phoenix Contact TRIO-PS-2G/1AC/48DC/10 Switch Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc, Блок питания

Phoenix Contact TRIO Single Phase Power Supplies

The range of Trio, single phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages. The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.

The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and Benefits:

• Can be used on networks where the phases become imbalanced


• Withstands up to 300Vac input


• Temperature range -25 to +70°C


• Robust metal housing


• High Electric strength


• Minimize installation costs by using the third negative terminal block as a grounding terminal block


• High MTBF (mean time between failures) of more than 500,000 hours


• High dielectric strength of up to 300 V AC


• Quick installation thanks to a push-in connection


• Slim design


• Input for AC and DC voltage

Typical applications:

Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

Phoenix Contact Switch Mode Power Supply, 10A, 48V DC - TRIO-PS-2G/1AC/48DC/10 - 2903160

Maintain reliable power and signal supply over long cable runs with this switch mode power supply from Phoenix Contact. It has an adjustable output so you can set it to compensate for extended lengths of cord without worrying about it losing its power or signal transmission abilities.
A mean time between failures of over 800,000 hours means the unit offers mechanical and electrical stability throughout an extended service life. It's insensitive to electromagnetic discharge, so won't be negatively affected by nearby electronic components. Push-in connectors make the power supply easy to assemble without using any tools.
This unit has a dynamic power reserve that offers reliable starting of difficult loads. It's suitable for one-phase industrial systems, such as those found in machine building applications and automated assembly lines.

• Mechanically robust and resistant to vibration and shock for use in harsh working conditions
• Reliable operation in a wide range of temperatures from -25°C to +70°C
• Conforms to EN 55011 (European Norm) noise emission standards for quieter operation
• Meets UL 508 (Underwriters' Laboratories) safety standards for industrial control equipment that stops, starts or regulates electric motors
