THN 15-7215WIR, TRACOPOWER THN 15WIR DC-DC Converter, 24V dc/ 625mA Output, 36 → 110 V dc Input, 15W, PCB Mount, +85°C Max Temp, Преобразователь

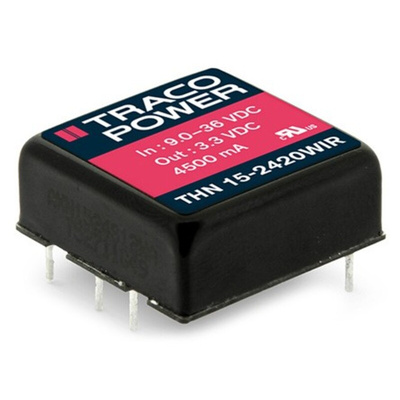

Traco 15W PCB Mount DC-DC Converters - THN 15WIR Series

From TRACO POWER, a range of 15 W ruggedised through hole DC-DC converters. Supplied in a compact 1”x1” x 0.4” package, these robust DC-DC converters have increased resistance against electromagnetic interference, shock and vibration. This feature makes the THN 15WIR series ideally suited to applications in the harshest of environments. Approvals according to standards EN 50155 and EN 61373 also qualify the range for the railway and transportation systems. The THN 15WIR series benefit from an ultra-wide 4:1 input voltage range and fully adjustable output voltages with remote on/off. This highly efficient series also feature built in EMI filters, input- under voltage lockout, and short circuit protection.

Features and Benefits

• Compact 1” x 1”x 0.4” standard package
• Ultra-wide 4:1 input voltage range 9 V dc to 36 V dc, 18 V dc to 75 V dc 36 V dc to 160 V dc
• High efficiency up to 91%
• Adjustable output voltage and remote on/off
• 3000 V dc I/O- isolation
• Under-voltages lock- out circuit

Applications

• Railway
• Transportation
• Industrial electronics
• Mobile instrumentation

Approvals

EN 50155 and EN61373
