THN 15-2415WIR, TRACOPOWER THN 15WIR DC-DC Converter, 24V dc/ 625mA Output, 9 → 36 V dc Input, 15W, PCB Mount, +85°C Max Temp, Преобразователь

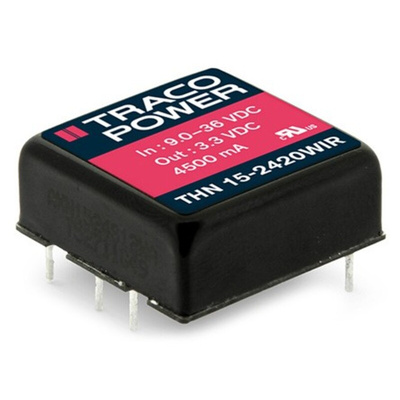

Traco 15W PCB Mount DC-DC Converters - THN 15WIR Series

From TRACO POWER, a range of 15 W ruggedised through hole DC-DC converters. Supplied in a compact 1”x1” x 0.4” package, these robust DC-DC converters have increased resistance against electromagnetic interference, shock and vibration. This feature makes the THN 15WIR series ideally suited to applications in the harshest of environments. Approvals according to standards EN 50155 and EN 61373 also qualify the range for the railway and transportation systems. The THN 15WIR series benefit from an ultra-wide 4:1 input voltage range and fully adjustable output voltages with remote on/off. This highly efficient series also feature built in EMI filters, input- under voltage lockout, and short circuit protection.

Features and Benefits

• Compact 1” x 1”x 0.4” standard package
• Ultra-wide 4:1 input voltage range 9 V dc to 36 V dc, 18 V dc to 75 V dc 36 V dc to 160 V dc
• High efficiency up to 91%
• Adjustable output voltage and remote on/off
• 3000 V dc I/O- isolation
• Under-voltages lock- out circuit

Applications

• Railway
• Transportation
• Industrial electronics
• Mobile instrumentation

Approvals

EN 50155 and EN61373

Traco Power THN 15WIR Series DC-DC Converter, 90% Efficiency, PCB Mount - THN 15-2415WIR

This DC-DC converter by Traco Power offers a compact solution for various industrial applications. With high efficiency and isolation capabilities, this converter ensures reliable power distribution in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• 90% efficiency ensures minimal power loss for cost effective operation
• With 3 kV dc isolation voltage, ensuring safe operation
• Input voltage from 9 to 36 V dc allows versatile use
• Meets EN 50155 standards for railway applications
• Compact and easy to mount on PCBs
• Suitable for use in fire sensitive environments
• 625 mA for consistent and reliable power delivery

Applications

• Suitable for use in railway and transportation systems
• Ideal for industrial automation applications requiring isolated power sources
• Perfect for harsh environments requiring compliance with fire safety regulations

Can it be used in harsh environments?

Yes, this DC-DC converter is designed for rugged environments with enhanced resistance.

Will it provide reliable power for railway applications?

Yes, with EN 50155 approval, it meets the stringent requirements for railway applications.

Can it be mounted on PCBs easily?

Yes, the DIP-6 package allows for simple integration into PCB designs.

Does it meet industry safety standards?

Yes, with UL 60950-1 certification, this converter maintains high safety standards.
