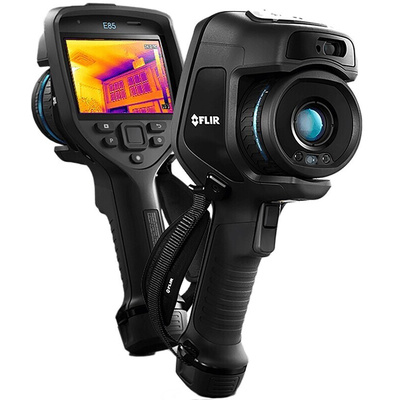

78502-0101, FLIR E75 Thermal Imaging Camera, -20 → +120 °C, 320 x 240pixel Detector Resolution With RS Calibration, Тепловизор

FLIR EXX Series™ Advanced Thermal Imaging Cameras

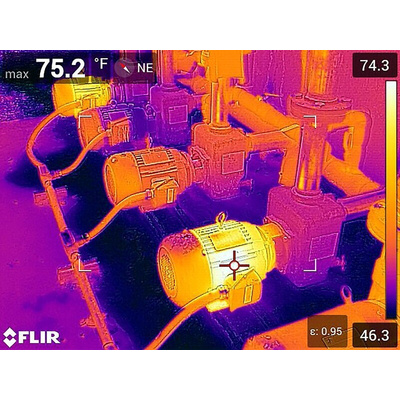

FLIR EXX Series combines all the latest thermal imaging and communication features. The thermal camera offers superior sensitivity and a true 42° field of view in a user-friendly hand held platform. These cameras through infrared can detect even subtle indications of building deficiencies and moisture intrusion. They can offer on-screen area measurement so you can easily quantify and document air leaks, moisture and other building problems. A large touchscreen provides intuitive menu navigation and new technology allows lenses to be added or shared without factory recalibration.

Features and Benefits:

• MSX® image enhancements add perspective to scenes, with edge detail on windows and doors
• 5 MP digital camera mode
• Built-in voice annotation and customisable work folders make finding images easier
IR resolution 320 x 240 pixel
• 4" optically bonded PCAP touchscreen with 160° viewing angle
• Rugged, water-tight chassis and scratch resistant Dragontrail™ cover glass
• Fast, precise laser-assisted autofocus
• Grip, trigger and buttons designed for easy one-handed operation
• Sensitive enough to identify hidden building deficiencies
• On-screen area measurement (E85, E95)
• WiFi, METERLiNK® connectivity
• True 42° field of view (FOV) lens allows for surveys of wide areas with a single lens, available separately 135-3296

Supplied with

Infrared camera with 24° lens, battery (2), battery charger with power supply, front lens and light protection, hand and wrist straps, lanyards, lens caps (front and rear), lens cleaning cloth, 15 W3 A power supply, printed documentation, 8 GB SD card, torx screwdriver, cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), hard transport case.

Note

The Power supply,‎ 15 W/3 A includes:
•\tEU plug
•\tUK plug
•\tUS plug
•\tAU plug
•\tKorea plug
The Power supply for battery charger includes:
•\tEU plug
•\tUK plug
•\tUS plug
•\tAU plug

Datasheet
