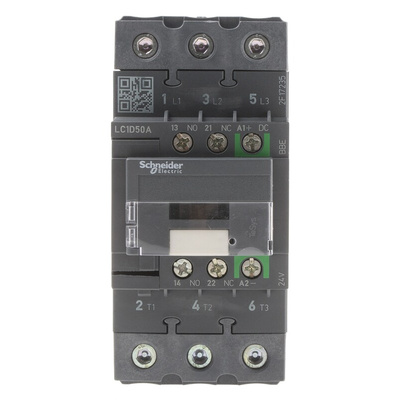

LC1D50ABBE, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors Range

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Typically, applications include resistive loads and motor control
• Highly reliable
• Excellent quality
• TeSys D Green contactors keep the same high resistance to shock and vibration as TeSys D, their coils offer a wider control voltage band and a lower permanent consumption
• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes, the TeSys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, Flame-Retardant, 997g Weight - TeSys D Series - LC1D50ABBE

Switch the power to demanding circuits using this contactor from Schneider Electric. It's specifically designed for motor control and resistive loads, as its fast-acting contacts open and close in less than 1 second to suppress electrical arcs. This helps to ensure there's minimal chance of power surges causing damage to components. Everlink terminals on its power circuit side let you conveniently connect a circuit breaker vertically without using accessories. As this contactor is supplied with a protective cover, you've got what you need to safeguard it against bumps and airborne contaminants.

Features & Benefits

• Compatible with plate or DIN rail mounting to best suit your setup
• Durable control circuit screw terminals withstand vibration and shock for safe use in demanding environments
• Flame-retardant, so burns for a maximum of 30 seconds if it catches alight
• Mechanical durability of 6 million cycles, so you get an extended lifespan

Applications

• Lighting installations
• Refrigeration units
• Medical facilities
• Food and beverage manufacturing

Is this contactor a green product?

Yes, this is an environmentally friendly product, as it's 65% recyclable to minimise the amount of industrial waste sent to landfill.
