960-015-010R011, Norcomp 960, MICRO-D 15 Way D-sub Connector Socket, Разъем

NorComp MICRO-D Micro-Miniature Female D-Sub Connector Backshell Kits

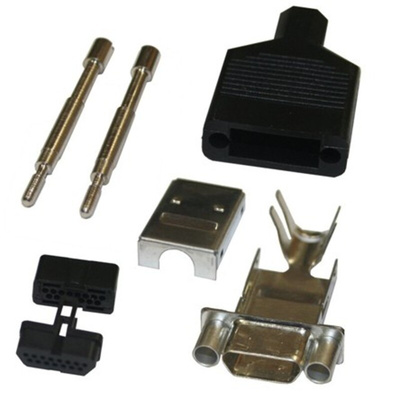

MICRO-D micro-miniature female D-Sub connector backshell kits with a 1.27mm pitch and a compact design. The micro-miniature D-Sub connector is 1/3 the size of a standard D-Sub connector. These MICRO-D d-sub connectors have a metal interface for improved grounding and shielding and a robust mechanical connection. The MICRO-D female backshell kits consist of a thermoplastic backshell, tin plated steel alignment sleeve, tin plated cover, thermoplastic front and rear insulator and 2 x 2-56 jackscrews. The female contacts must be purchased separately. These MICRO-D female backshell kits are available in industry standard sizes of 9, 15 and 25 positions.

Features and Benefits

• Compact space saving design, 1/3 size of standard D-Sub connectors
• Metal interface for improved grounding and shielding
• Intermate with most commercial competitive products

Product Application Information

These MICRO-D series micro-miniature D-Sub connectors are ideal for use in commercial applications where a robust I/O connector is required and space is limited.

D-Sub Connectors - NorComp

Brochure

960-015-010R011 Datasheet
