Vent-Axia VSP40014 VSP Square Wall Mounted Plate Fan, 1.07m³/s, 46dB(A), Lightweight, Thermal Overload Protection, Duct, Вентилятор

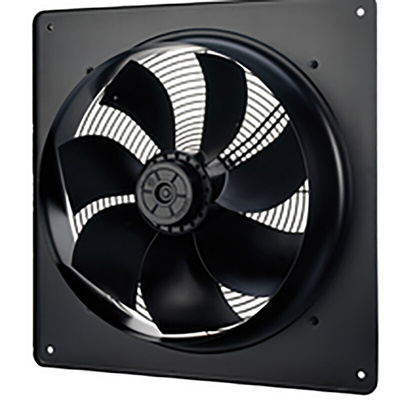

Vent-Axia Plate Mounted Sickle Fan

The Vent-Axia plate mounted sickle fan has an airflow of 1.07m³/s and supply voltage of 230VAC. It is a compact, integrated, impeller plate fan. This device incorporates the latest FE2 Owlett impeller offering improved performance over the previous ranges with up to 7dB (A) reduction in sound. It also provides up to 15% improvement in efficiency, ensuring the best in class fan performance. The advanced blade design, matched to a purpose-designed external rotor motor ensures unrivalled reliability and controllability. The fan is available with a height of 549mm, a width of 549mm and depth of 181.5mm.

Features and Benefits

Fan speed of 1340rpm
Swept impeller with aerofoil blades, winglets and serrated trailing edge for optimum performance
One shot die-cast impeller, dynamically balanced for smoother operation
Operating temperature up to 70°C
External rotor motors on all models for compact efficient design
All models speed controllable
Guards fitted as standard on all models
Thermal overload protection for motor protection
Maintenance free sealed for life bearings
Epoxy paint finish
Blade diameter of 412mm
Direction of curve is backward
Ball bearing
Power consumption of 166W
Electronic commutation
Noise level of 46dB (A)
Maximum current of 4.2A
Lead wire termination
Special features are lightweight, thermal overload protection
2 year guarantee

Applications

Factories
Warehouses

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
