Vent-Axia VSP50014 VSP Square Wall Mounted Plate Fan, 2.47m³/s, 51dB(A), Lightweight, Thermal Overload Protection, Duct, Вентилятор

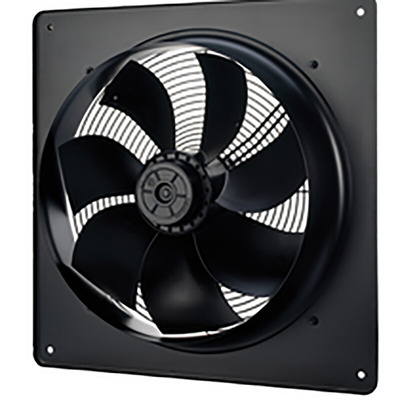

Vent-Axia Plate Mounted Sickle Fan

The Vent-Axia plate mounted sickle fan has an airflow of 2.47m³/s and a supply voltage rating of 230VAC. It is the latest innovation that incorporates the latest FE2 Owlett impeller. This offers improved performance over the previous ranges with up to 7dB (A) reduction in sound and up to 15% improvement in efficiency. The advanced blade design, matched to a purpose-designed external rotor motor ensures unrivalled reliability and controllability. It is available with a height of 655mm, width of 655mm and depth of 226mm.

Features and Benefits

Fan speed of 1230rpm
Noise level of 51dB(A)
Power consumption of 630W

Swept impeller with aerofoil blades, winglets, and serrated trailing edge for optimum performance
One-shot die-cast impeller, dynamically balanced for smoother operation
Operating temperature up to 70°C
External rotor motors on all models for compact efficient design
All models speed controllable
Guards fitted as standard on all models
Thermal overload protection for motor protection
Maintenance-free sealed for life bearings
Epoxy paint finish
AC operation
Blade diameter of 517mm
Direction of curve is backward
Ball bearing
Electronic commutation
Maximum current of 13.2A

Lead wire termination
Lightweight
2-year guarantee

Applications

Factories
Warehouses

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
