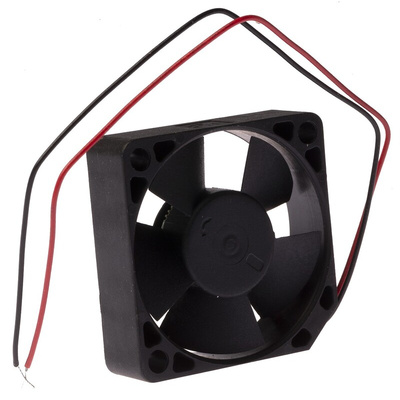

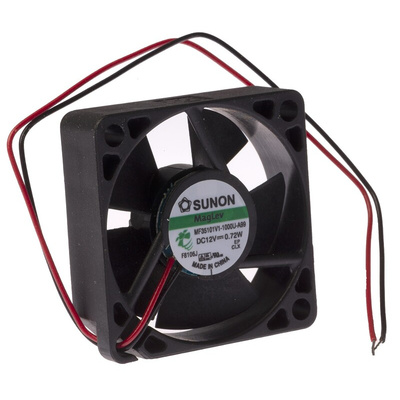

MF35101V1-1000U-A99, Sunon M Series Axial Fan, 12 V dc, DC Operation, 12.2m³/h, 720mW, 60mA Max, 35 x 35 x 10mm, Вентилятор

Sunon DR MagLev Series DC Fans

Sunon DR MagLev series DC fans utilise MagLev technology to produce a fan with superior performance, low noise and long life. MagLev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the MagLev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. MagLev also provides excellent high temperature endurance that results in long life.

Additionally, MagLev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance. The DR MagLev series also feature two innovations to further enhance performance and life span. Seal and Clip (S&C) and Blanked and Seamless (B&S) technologies both add additional benefits such as dust invasion resistance, prevention of oil leakage and increased resistance to movement due to temperature changes.

Features and Benefits:

• Extended motor life
• Prevention of oil leakage
• High quality construction

Sunon DR MagLev Series DC Fans

The Sunon DR MagLev series fan is a square-shaped 12VDC fan. This fan is made by using MagLev technology which gives superior performance and long life. Its motor works without shaking which eliminates the typical wobble and vibration, thus providing rotational stability. The housing is made of plastic for optimal insulation resistance and electrostatic discharge performance. This fan has an electrical rating of 12VDC and 60mA. Its speed is 10000rpm.

Features and Benefits

• Auto restart capability
• Dust invasion resistance
• Excellent high temperature endurance
• High-quality construction
• Low noise level
• Prevention of oil leakage

Applications

• Refrigerators
• Server and storage
• Solar inverters

Certifications

• CE certified
• CUR certified
• TUV certified
• UL approved

MF35101V1-1000U-A99 Datasheet
