IXYS CLA110MB1200NA, Dual Thyristor Module 1200V, 50A 80mA, Тиристорный модуль

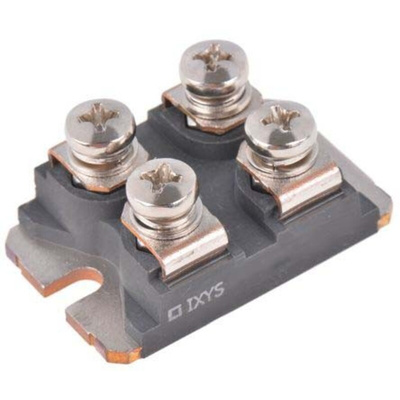

CLA110MB AC Thyristor Module

This AC power control thyristor module from IXYS contains two back-to-back thyristors allowing full-wave AC power control. The device is housed in an isolated base SOT227B package and has a current rating of 50A with reverse voltage rating of 1200V.

• Industry standard outline
• Isolated copper baseplate for good heat transfer
• Two-hole screw fixing
• M4 screw terminal connections
• 3000Vac isolation rating

Thyristors - IXYS

A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.

CLA110MB1200NA AC Control Thyristor
