MEAN WELL Switching Power Supply, IRM-15-24, 24V dc, 630mA, 15W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

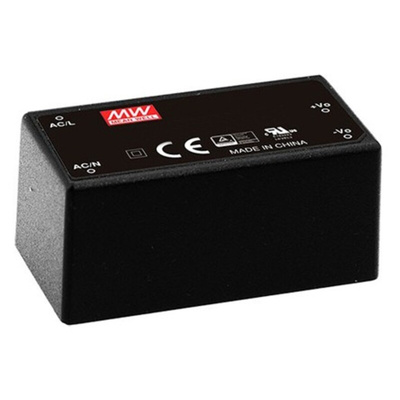

Mean Well Encapsulated Switch Mode Power Supply

The Mean Well IRM-15 series 15.12W single output AC to DC encapsulated switch-mode power supply has an output current rating of 0.63A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC and 120VDC to 370VDC. The power supply meets anti-vibration demand up to 5G capability. It provides resistance to dust and moisture while enhancing heat dissipation. It has a compact output solution and is ready to solder straight onto PCB boards. The power supply has a class II design and includes built-in EMI filtering components along with excellent EMC features that prevent electromagnetic interference.

Features and Benefits

Highly versatile
Low no-load power consumption below 0.1W
High efficiency up to 83%
Compact size
Overvoltage
Overload and short circuit protection
Cooled by free air convection
Full load burn-in test 100%
High reliability

Applications

Hand held electronic devices
Factory automation equipment
Mechanical equipment
Industrial electrical equipment

Certifications

UL60950-1
TUV approved
EN60950-1 approved
EN55022 (CISPR22) class B
EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11
EN55024
Heavy industry level (surge L-N: 1KV)
Criteria A

IRM-15 Series Datasheet
