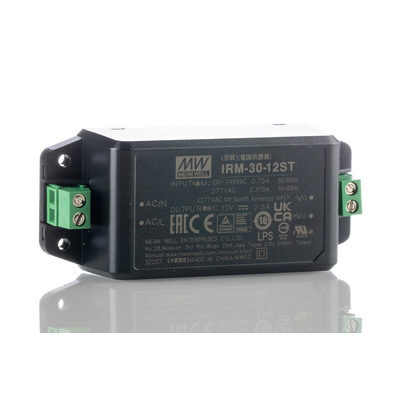

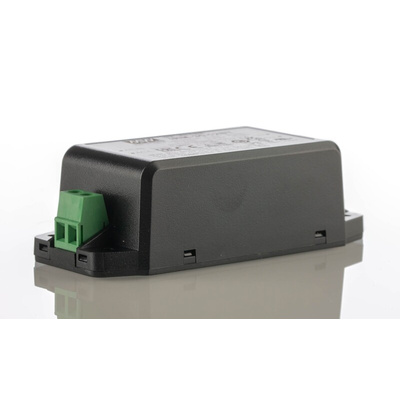

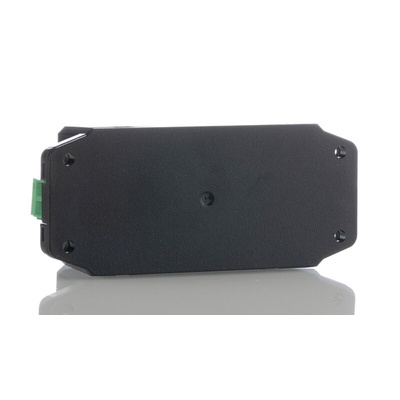

MEAN WELL Switching Power Supply, IRM-30-12ST, 12V dc, 2.5A, 30W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

Mean Well Encapsulated Switch Mode Power Supply

The Mean Well IRM-30 series 30W single output AC to DC encapsulated switch-mode power supply has an output current rating of 2.5A at 12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC. The device is constructed from a 94V-0 flame-retardant plastic case and fully potted silicone. The construction meets anti-vibration demand up to 5G and provides resistance to dust and moisture while enhancing heat dissipation. It has a compact output solution and is ready to solder straight onto PCB boards. The power supply has a class II design and includes built-in EMI filtering components along with excellent EMC features that prevent electromagnetic interference.

Features and Benefits

Highly versatile
Low no-load power consumption below 0.1W
High efficiency up to 88%
Compact size
Overvoltage
Overload and short circuit protection
Cooled by free air convection
Full load burn-in test 100%
Pass LPS (except for 5V)
High reliability
Screw terminals

Applications

Hand held electronic devices
Factory automation equipment
Mechanical equipment
Industrial electrical equipment

Certifications

UL60950-1
TUV approved
EN60950-1 approved
EN55022 (CISPR22) class B
EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11
EN55024
Heavy industry level (surge L-N: 1KV)
Criteria A

IRM-30 Series Datasheet
