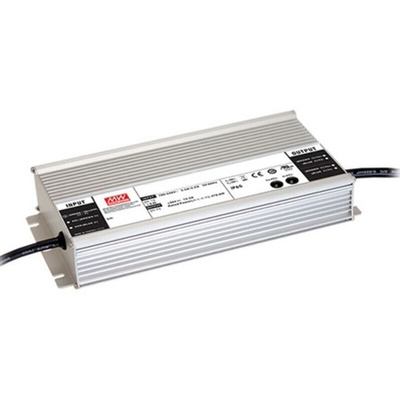

MEAN WELL Switching Power Supply, HEP-480-48A, 48V dc, 10A, 480W, 1 Output, 127 → 431 V dc, 90 → 305 V ac, Источник питания

Mean Well Embedded Switch Mode Power Supply

The Mean Well HEP-480 series 480W single output AC to DC embedded switch mode power supply has an output current rating of 10A at 48VDC. It has a universal input supply voltage rating ranging from 90VAC to 305VAC/127VDC to 431VDC. This device can perform under extreme conditions such as high humidity, dusty, oily, high vibration and poorly ventilated environments. It is constructed of an aluminium casing and is fully potted with heat-conducted silicone

Features and Benefits

Built-in power factor correction function
overload, over temperature, overvoltage and short circuit protection
Fanless design
Anti-vibration capability up to 10G
Operating altitude up to 5000m
Efficiency up to 94.5% (depending on model)
Class I power unit
Meets 6kV surge immunity level (line to earth)
V and I level can be adjusted through internal potentiometer

Applications

Outdoor telecommunications equipment
Billboards
Petroleum plants or mine shaft facilities

Certifications

UL60950-1
IP65 (or IP68 for HEP-480 blank-type) approved
TUV EN60950-1 (design refers )
Compliance to EN55022 (CISPR22) class B
EN61000-3-2,-3
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11
EN55024
Light industry level (surge 6 kV)
Criteria A

HEP-480 Series Datasheet
