Digi International XBee-S2C RF Transceiver Module for Street Light 2.4GHz ZigBee XB24CAWIT-001 XBee

Digi International XBEE RF Transceiver

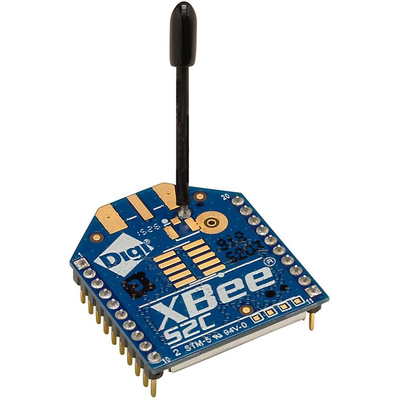

The Digi International XBEE RF transceiver is high tech device that operates in the frequency band of 2.4GHz. The transceiver is built with the silicon labs EM357 system-on-chip microcontroller. The design has improved power consumption, support for over-the-air firmware updates and provides an upgrade path to DigiMesh or ZigBee mesh protocols. The module communicates through a wire antenna. It also provides a long-range line-of-sight communication 1200m.

Features and Benefits

Serial data interface like UART, SPI
Configuration method API or AT commands, local or over-the-air (OTA)
Frequency band ISM 2.4GHz
Hardware S2C
10-bit four ADC inputs
16 GPIO channels
Point-to-multipoint network topology
Through-hole and surface mount form factors enable flexible design options
Common XBee footprint for a variety of RF modules
Industry leading sleep current of sub 1uA
Firmware upgrades via UART, SPI or over the air
Migratable to DigiMesh and ZigBee PRO protocols and vice-versa
Antenna options through-hole: PCB antenna, U. FL connector, RPSMA connector or integrated wire
SMT RF pad
Operating temperature ranges between -40°C and 85°C
Simple, out-of-the-box RF communications, no configuration needed

Applications

Embedded development
Home and building automation
M2M
Wireless sensor networks
Robotics

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:200

XBee-s2c-802-15-4 RF Modules Datasheet
