RS PRO Straight, Panel Mount, Socket to Socket Type Micro AB to Micro AB IP67 USB Connector, Разъем

RS PRO USB Connector, Panel Mount, Plug A, B A, B, Plug In, Straight IP67

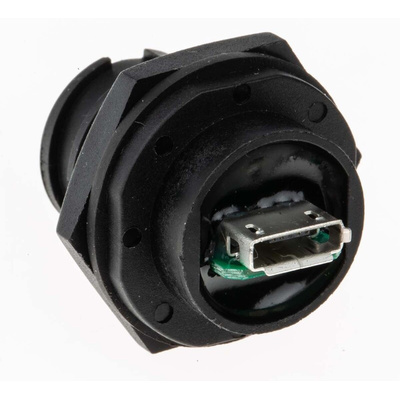

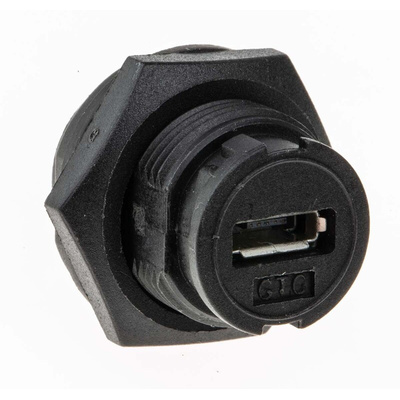

Need a reliably waterproof micro USB to micro USB connector? Manufactured from rugged thermoplastic with a black silicone gasket providing a tight panel seal, this coupler from the RS PRO range is effective at keeping out water and dust. It has an IP67 rating, which means it's waterproof at a depth of a metre for half an hour.

This connector is recommended for panels between 0.8 mm and 3.0 mm thick. Contacts are gold-plated to ensure quality data transmission. It's voltage-rated at 100 V, current-rated at 1 A and has an operating temperature range of -40˚C to +105˚C. Straight orientation makes for easy installation.

This connector has been tested against international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also compliant with RoHS (Restriction of Hazardous Substances) standards. You'll find this kind of connector used in outdoor displays or in the marine and military sectors.

Features and Benefits

• USB to micro USB connector
• Panel mount
• Recommended panel thickness 0.8 mm to 3 mm
• GTC sealed
• Minimum operating temperature of -40˚C
• Maximum operating temperature of +105˚C
• Voltage rated at 100 V
• Current rated at 1 A
• Gold-plated contacts ensure quality data transmission
• RoHS compliant on hazardous substances
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Micro USB Plastic Coupler data sheet
