1421607, Phoenix Contact CUC Series Male RJ45 Connector, Cable Mount, Cat5, Разъем

IP20 RJ45 Plugs

From Phoenix Contact, a series of 8 position RJ45 connectors. These IP20 RJ45 connectors benefit from IDC fast connection technology making them ideal for time critical situations. The connectors have copper alloy contacts with gold over nickel plating, ensuring optimum quality in connections within networking environments. All models are highly reliable and excellent quality.

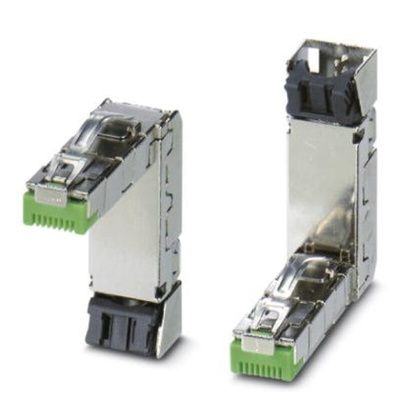

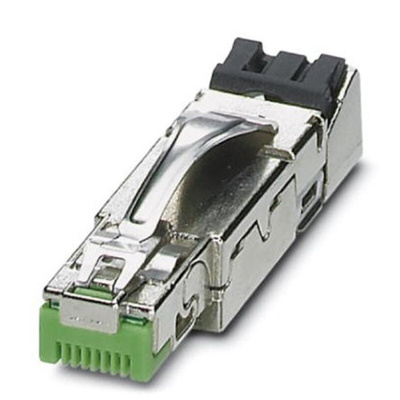

Phoenix Contact Male Connector, RJ45, Cat5 - CUC-IND-C1ZNI-S/R4IE8 - 1421607

Keep your data network running smoothly with this versatile RJ45 (radio jack) connector from Phoenix Contact. You can use it to link voice and data equipment to each other, or to a central control hub.
The male plug features IDC (insulation-displacement contact) technology that bypasses the need to strip an insulated conductor and significantly reduces wiring time. Copper-alloy contacts offer a high-quality connection that's free of outside interference for fast data transfer speeds. This metal is also extremely resistant to wear and has good heat dissipation to prevent the connector from overheating.
Use this universally standardised interface in a broad range of ethernet applications. Its high resistance to shock and vibration makes it a good choice for rugged industrial conditions, such as machine-building and systems manufacturing.

• IP20 (ingress protection) rated housing that's protected from touch by fingers and objects greater than 12mm
• Die-cast zinc body
• Accepts conductors with diameters ranging from AWG26 to AWG24 (American Wire Gauge)
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Datasheet
