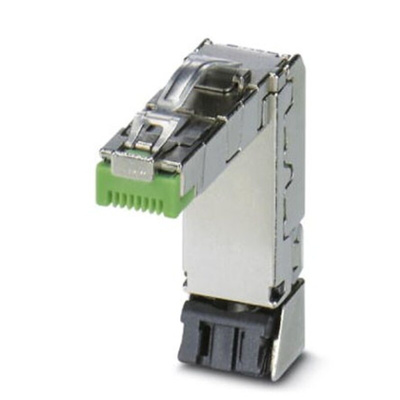

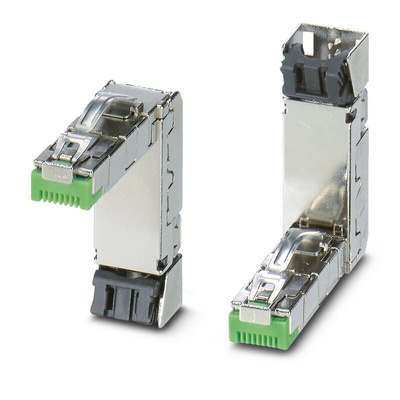

1421877, Phoenix Contact CUC Series Male RJ45 Connector, Cable Mount, Cat5, Разъем

Phoenix Contact RJ45 Connector, 1Gbit/s Data Speed, 1.75A Current Rating - CUC-IND-C1ZNI-T/R4IE8 - 1421877

Help data flow smoothly through your system with this RJ45 connector from Phoenix Contact. It attaches to the end of your Ethernet cable, giving you a quick way to assemble new data connections so you can skip to hooking up your network devices. Thanks to support for 1Gbit/s data transfer speeds, you can be confident your process information whizzes across your system in a blink. Making network connections in cramped spaces is simple, as the unit has a handy angled shape.
There's no need to worry swapping your cables about, as this connector works with commonly used cord diameters between 5 and 9mm. It crimps directly onto your cord, so getting set up is a hassle-free task. Nickel-plated copper alloy contacts with a highly conductive gold coating are on hand to ensure your network connections work as hard as you do.

Features & Benefits

• Lifespan of at least 750 mating cycles for longevity
• High test voltage rating of 1kV, helping your network keep working through power faults
• Inflammability rating of V0 by UL 94 standards, so it limits the spread of fire to help protect your sensitive components

Datasheet

Instruction Sheet - 1421877

Line Drawing - 1421877
