MikroElektronika IrDA2 click MCP2120, TFDU4101 Development Kit for MikroBUS MIKROE-1195

IrDA2 click mikroBUS™

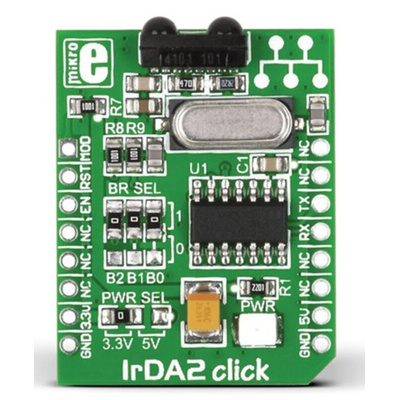

IrDA2 click is a mikroBUS add-on board for adding infrared data communication. It features the Vishay TFDU4101, an Infrared Transceiver Module, and the Microchip MCP2120, Infrared Encoder/Decoder.

IrDA standard (115.2 kbaud, more than a meter range)
Baud rate selection by three on-board jumpers (115200 MHz default)
Low power consumption
UART interface on mikroBUS socket
3.3 V (default) or 5 V power supply on mikroBUS socket
Dimensions 28.6 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

IrDA2 click Datasheet

TFDU4101, Infrared Transceiver Module (SIR, 115.2 kbps) for IrDA Applications

MCP2120, Infrared Encoder/Decoder
