MikroElektronika OPTO click VO2630 Development Kit for MikroBUS MIKROE-1196

OPTO click mikroBUS™

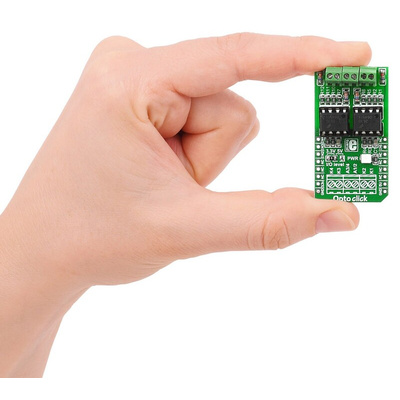

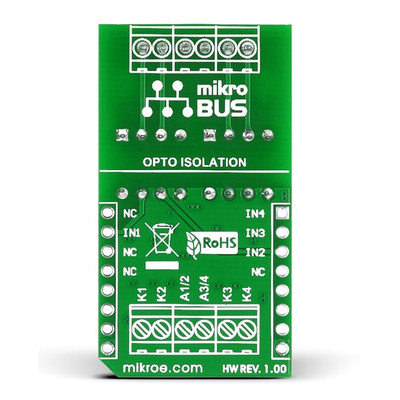

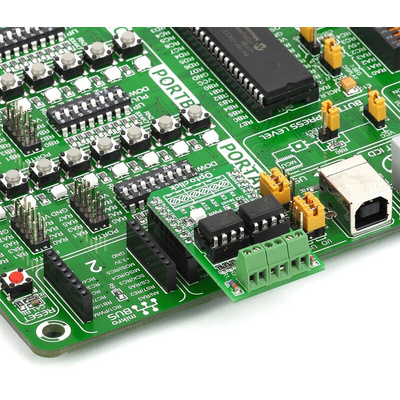

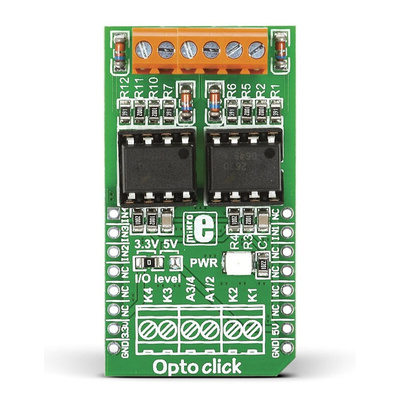

OPTO click is a mikroBUS add-on board for adding four high-speed optocoupler inputs. It features two Vishay VO2630, 10 MBd High Speed-Dual Optocouplers. They enable galvanic isolation between the input and output.

4 Input Lines interface on mikroBUS socket
Common Mode Rejection 1000 V/μs
Low input current
3.3 V (default) or 5 V power supply on mikroBUS socket
Dimensions 57.15 x 25.4 mm

Note

Easily replaced VO2630 optocouplers on DIP 8-pin sockets. Click board comes with the header strips soldered.

Click mikroBUS Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
