MIKROE-1305, MikroElektronika nRF T Click nRF24L01P RF Transceiver mikroBus Click Board for Active RFID, Game Controllers, Home &

nRF T click mikroBUS™

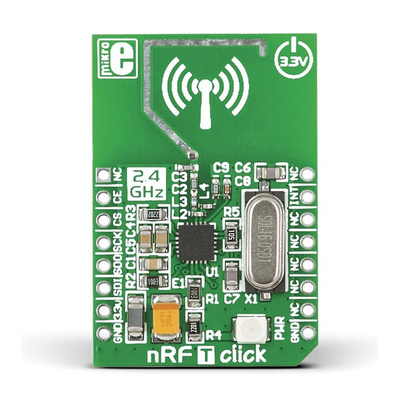

nRF T click is a mikroBUS add-on board for 2.4 GHz ISM band wireless communication. It features the \nNordic nRF24L01+, Ultra Low Power, 2 Mbps, 2.4 GHz RF Transceiver.

Data Rate of 250 Kbps, 1 Mbps and 2 Mbps
PCB trace 2.4 GHz antenna on-board
Ultra Low Power suitable for portable applications

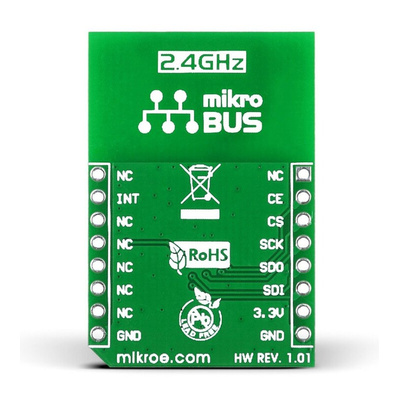

SPI interface on mikroBUS socket
3.3 V power supply on mikroBUS socket

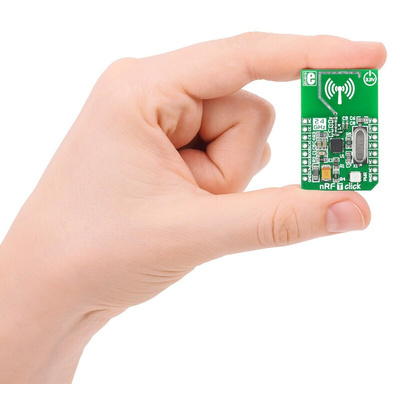

Dimensions 42.9 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

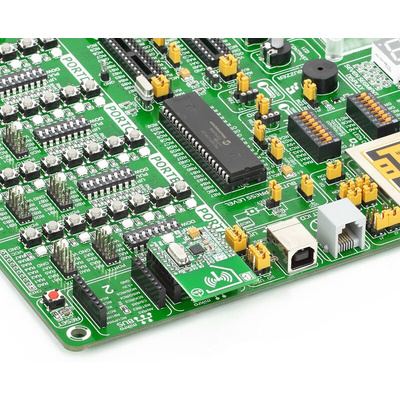

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

nRF T click Datasheet

nRF24L01+, Single Chip 2.4GHz Transceiver - Product Specification v1.0
