MIKROE-1435, MikroElektronika ccRF Click CC2500 RF Transceiver mikroBus Click Board for Active RFID, Game Controllers, Home &

ccRF click mikroBUS™

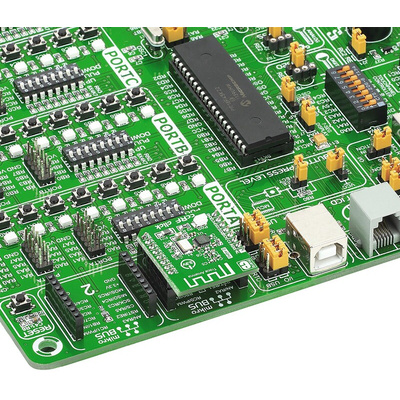

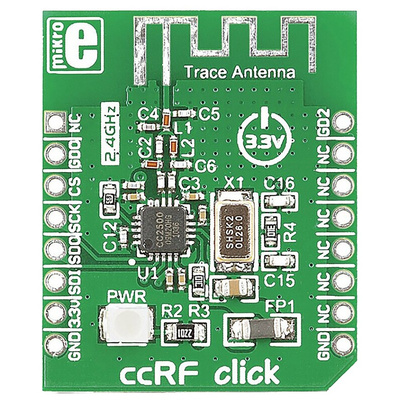

ccRF click is a mikroBUS add-on board for low-power wireless applications. It features the Texas Instruments CC2500, a Low-Power 2.4 GHz RF Transceiver.

Up to 500 kBaud data rate
64-byte Transmit/Receive FIFO
Programmable output power
OOK, 2-FSK, GFSK and MSK Modulations
Frequency hopping and multi-channel systems
Low current consumption at 0.4 μA SLEEP mode

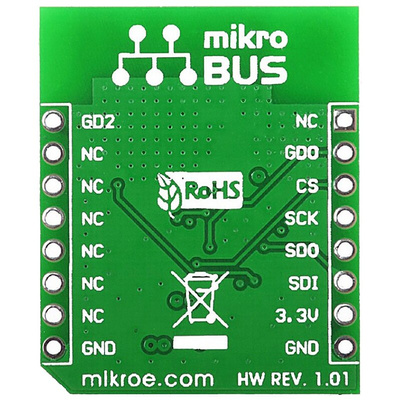

SPI bus interface on mikroBUS socket
3.3 V power supply on mikroBUS socket

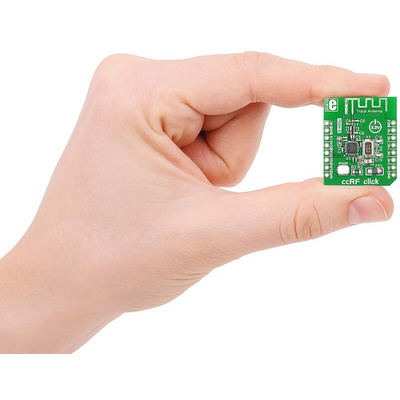

Dimensions 28.6 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

ccRF click Datasheet
