MikroElektronika MIKROE-1894 ADC3 Click 16-Bit ADC mikroBus Click Board for MCP3428

ADC3 click mikroBUS™

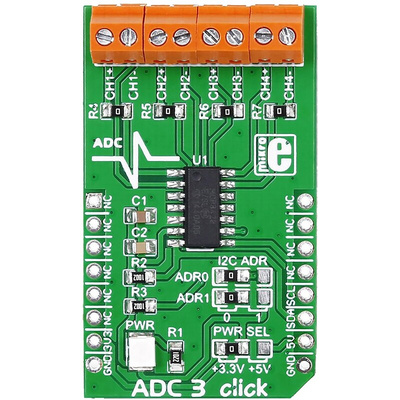

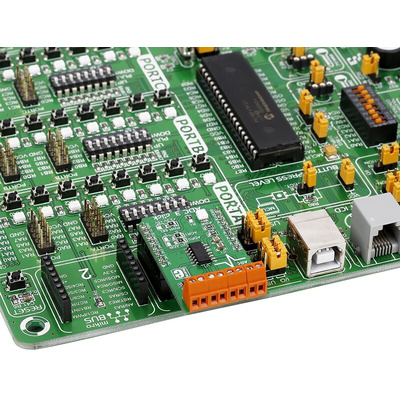

ADC3 click is a mikroBUS add-on board for analogue signal applications where high sample rate is required with high accuracy. The Microchip MCP3428 is a four channel low-noise ΔΣ Analogue-to-Digital Converter with differential inputs and up to 16 bits of resolution. The click has four pairs of screw terminals on-board, letting you access the chip’s four differential input channels.

Four pairs of screw terminals on-board, letting you access the four differential input channels
Programmable Data Rate of 15 Samples per Second (SPS) at 16-bits resolution
Programmable Data Rate of 60 Samples per Second (SPS) at 14-bits resolution
Programmable Data Rate of 240 Samples per Second (SPS) at 12-bits resolution
Serial data access through the I²C bus
Select the device address with an on-board jumper
3.3 V or 5 V power supply on mikroBUS socket

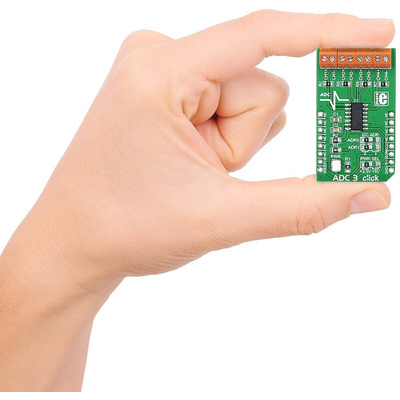

Dimensions 42.9 x 25.4 mm

Note

Click board comes with the header strips soldered.

ADC 3 Click Board User Manual

mikroBUS Socket Standard Specifications
