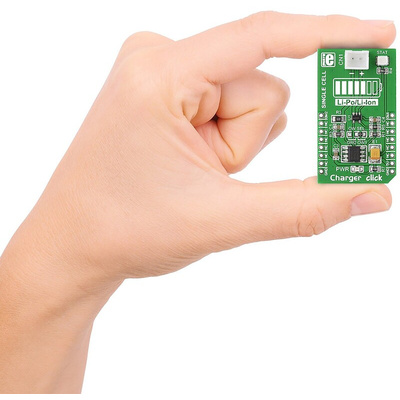

Charger click mikroBUS™
Charger click is a mikroBUS add-on board with a single-cell Li+ battery charge controller and a battery charge monitor. The Microchip MCP73831 is a Single-Cell, fully integrated Li-Ion/Li-Polymer Charge Management Controller. The Smart Battery Monitor IC is the Maxim DS2438. A jumper on-board selects the 1-Wire interface Data Input/Output connection pin on the mikroBUS socket.
Programmable charge current from 15 to 250 mA
1-Wire interface on mikroBUS socket
5 V power supply on mikroBUS socket
Battery Connector on-board JST XH 2.5 mm pitch
Dimensions 42.9 x 25.4 mm
Note
Click board comes with the header strips soldered.
Click mikroBUS Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
Charger Click Board User ManualmikroBUS Socket Standard SpecificationsMCP73831/2, Miniature Single-Cell, Fully Integrated Li-Ion, Li-Polymer Charge Management ControllersDS2438, Smart Battery Monitor| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
