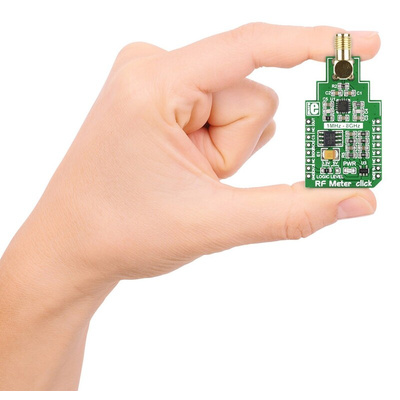

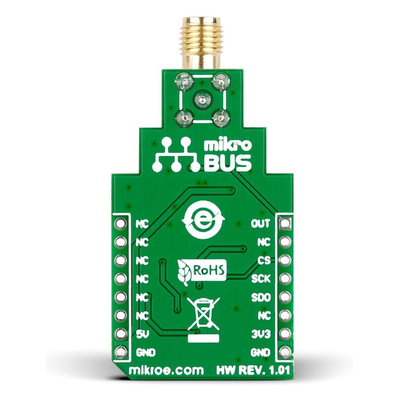

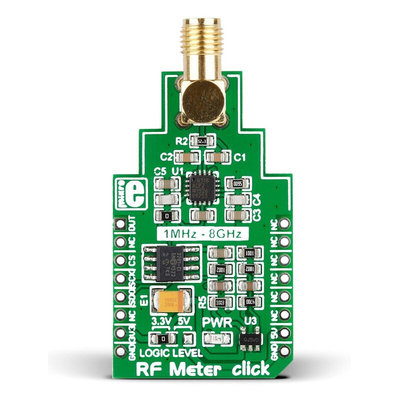

RF Meter click mikroBUS™

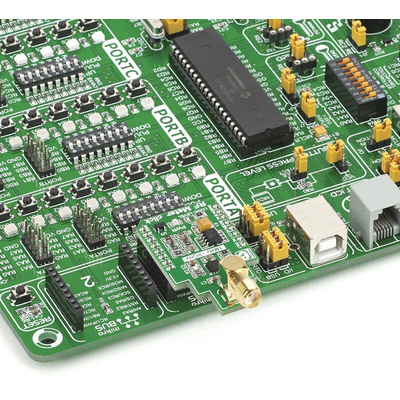

The Click accessory modules plug into the mikroBUS sockets in MikroElektronika microcontroller development boards. RF Meter click is a radio frequency power measurement device covering frequencies from 1MHz to 8GHz over a 60dB range (approximately).
• AD8318 Logarithmic Detector measures RF signal power in dB
• RF frequency range: 1MHz to 8GHz
• Power measurement range: 60dB
• Accuracy: ±1.0dB over 55dB range (f < 5.8GHz)
• SMA connector for 50Ω sensing antenna
• Communication: serial SPI bus
• Power supply: +5Vdc
• LED power indicator
Note
Click board comes with the header strips soldered.
Click mikroBUS™ Sensor Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
