MIKROE-2045, MikroElektronika GNSS4 Click SAM-M8Q GLONASS (GNSS), GPS mikroBus Click Board for Asset Tracking for Navigation Devices

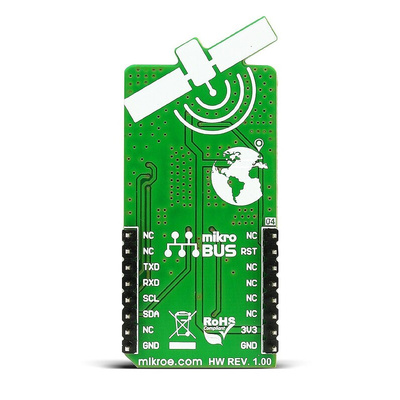

GNSS 4 click mikroBUS™

GNSS 4 click is a mikroBUS add-on board for receiving autonomous geo-spatial positioning signals \nfrom the Global Navigation Satellite System (GNSS). It features the u-blox SAM-M8Q, Smart Antenna Module for easy and reliable GNSS integration. The high accuracy smart module utilises concurrent reception from the United States Global Positioning System (GPS), the European Galileo and the Russian GLONASS.

72 Acquisition Channels
High Sensitivity -165 dBm
Supports augmentation of QZSS, GAGAN and IMES with WAAS, EGNOS, MSAS
NMEA protocol messages GGA, GLL, GSA, GSV, RMC, VTG, TXT
I²C bus or UART interface on mikroBUS socket
3.3 V power supply on mikroBUS socket
Dimensions 42.9 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

GNSS 4 Click Datasheet

SAM-M8Q, Smart antenna module for easy and reliable GNSS integration

u-blox 8 / u-blox M8, Receiver Description Including Protocol Specification
