Signal Relay click mikroBUS™

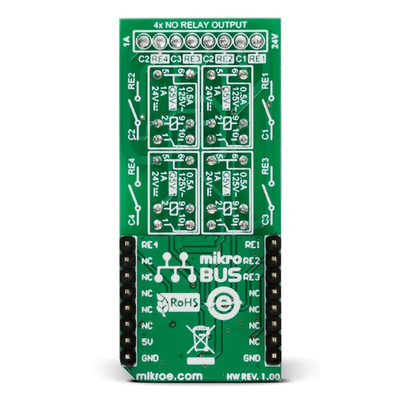

Signal Relay click is a mikroBUS add-on board for adding ON/OFF signal control with four relays. It features the Omron G5V-1, an Ultra-miniature Low Signal Relay.
Maximum Switching Voltage 125 V ac (0.5 A max.), 30 V dc (1 A max.)
Highly Sensitive 150 mW SPDT Relay
5 V dc Relay Coil Voltage
LED indicator for each Relay
mikroBUS signal interface pins: AN, RST, CS and PWM
5 V power supply on mikroBUS socket
Dimensions 57.15 x 25.4 mm
Note
Click board comes with the header strips soldered.
Click mikroBUS Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
mikroBUS Socket Standard SpecificationsSignal Relay click DatasheetG5V-1 Low Signal Relay, Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
