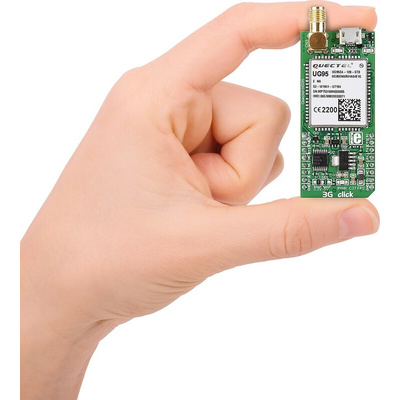

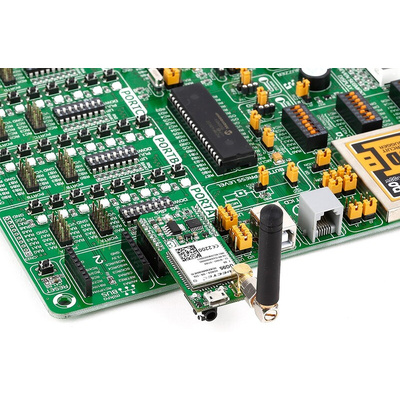

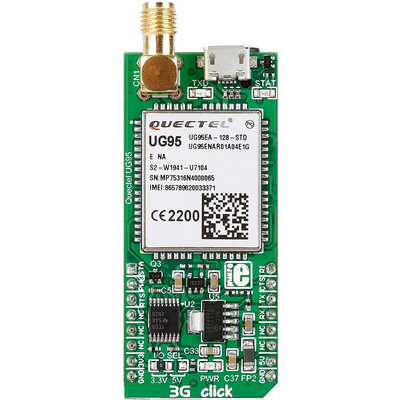

3G-AA Click mikroBUS™
3G-AA Click is a mikroBUS™ add-on board with an Quectel UG95 3G UMTS/HSPA Ultra-small module for \nhigh-speed and high quality data transmission.
UMTS/HSPA (850/1900 MHz) cellular coverage
Operates on American (USA) frequency bands
Dual-mode and Multi-band for UMTS and GSM
HSPA 7.2 Mbps, UMTS 384 Kbps Maximum Data Rates
Support for TCP, UDP, PPP, MMS, FTP, SMTP, SMTPS, HTTP, HTTPS, PING, and SSL protocol
USB 2.0 High Speed Interface on Micro USB connector
Quectel Enhanced AT Commands
SIM card slot
Audio Earphone/Microphone connector jack
SMA Antenna Connector on-board
UART interface on mikroBUS socket
3.3 V (default) or 5 V power supply on mikroBUS socket
Dimensions 57.15 x 25.4 mm
Note
Click board comes with the header strips soldered.
Click mikroBUS™ Wireless Communication Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
mikroBUS Socket Standard Specifications3G-AA Click (for United States) Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
