MikroElektronika MIKROE-2333, TIMER Elapsed Time Counter mikroBus Click Board for DS1682, Макетная плата

TIMER click mikroBUS™

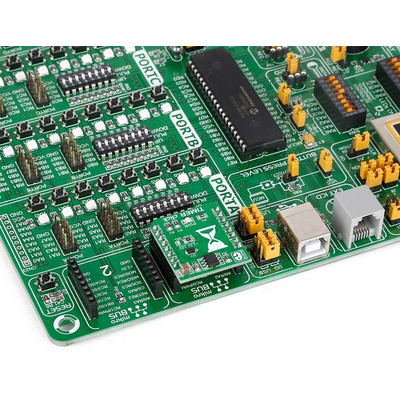

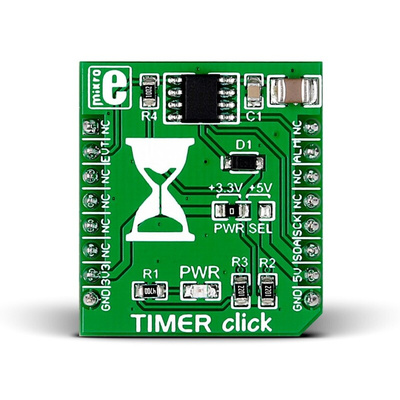

TIMER click is a mikroBUS add-on board for recording Elapsed-Time. It features the Maxim DS1682, a Total-Elapsed-Time Recorder with Alarm. A 32-Bit Elapsed Time Counter monitors the event duration with a Quarter of a Second resolution. The TIMER click records the total time that the event input has been active, and the number of events that have occurred.

Programmable Elapsed Time Alarm output (Active-Low or High Impedance)
Event Input (Active high)
EEPROM maintains timer user data (10 Bytes) without power supply

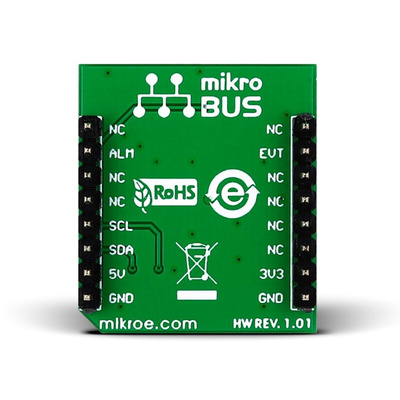

I²C Bus interface on mikroBUS socket
3.3 V (default) or 5 V power supply on mikroBUS socket

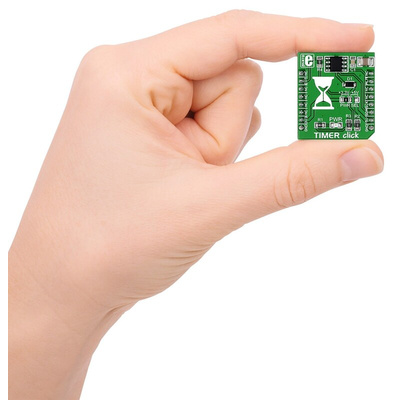

Dimensions 28.6 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

TIMER click Datasheet

DS1682, Total-Elapsed-Time Recorder with Alarm
