MIKROE-2382, MikroElektronika GSM-GPS Click SIM808 GLONASS (GNSS), GPS, Mobile Communication (Cellular) mikroBus Click Board for GSM

GSM-GPS click mikroBUS™

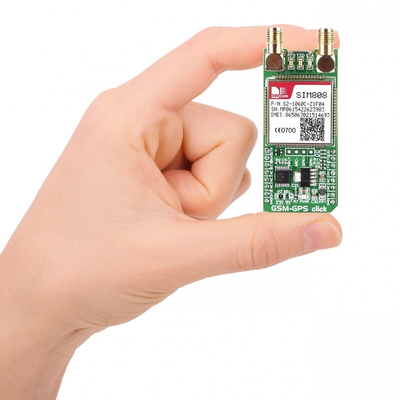

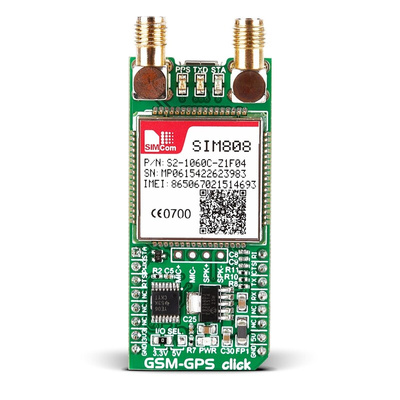

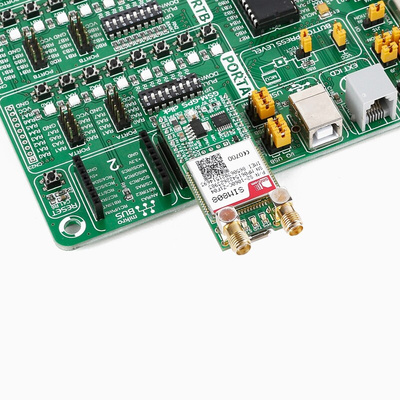

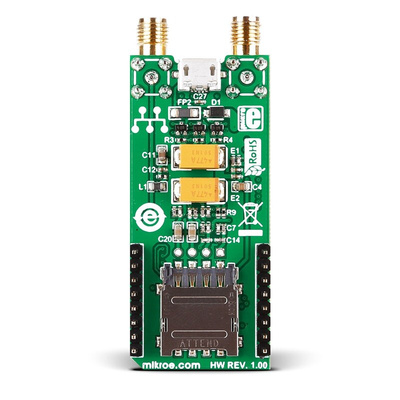

GSM-GPS click is a mikroBUS add-on board which combines GSM/GPRS cellular mobile communication and Global Navigation Satellite System (GNSS) for GPS satellite navigation.

GSM/GPRS Quad-band 850/1900 MHz, 900/1800 MHz
GPRS class 12: 85.6 kbps maximum
Embedded TCP/UDP, FTP/HTTP, MMS, POP3/SMTP, DTMF, SSL internet protocols
SMS messaging
SIMCom enhanced AT cellular commands
Connector for GSM SMA antenna
GPS Receiver with 66 Acquisition, 22 Tracking channels
GPS Sensitivity -166 dBm
Connector for GPS SMA antenna
Micro USB connector for computer interface
Speaker and a Microphone connecting pins on-board
UART interface on mikroBUS socket
3.3 V and 5 V power supply on mikroBUS socket
Dimensions 57.15 x 25.4 mm

Note

Operation requires two SMA antennas and a SIM card. Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

GSM-GPS click Datasheet

SIM808, GSM/GPRS and GPS Module
