MIKROE-2395, MikroElektronika NFC Click, Arduino Compatible Board

NFC click mikroBUS™

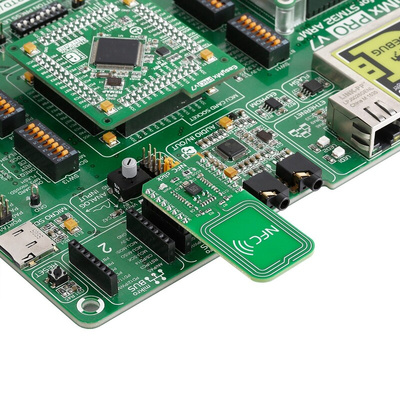

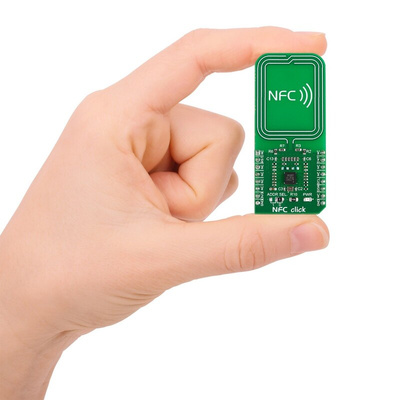

The NFC click is an add-on board that carries the NXP PN7120, a Full NFC Forum-compliant controller with integrated firmware and NCI interface. Near Field Communication (NFC) devices are already used in contactless payment systems, electronic ticketing, smartcards and advertising. The tap-and-go nature of NFC functionality makes many aspects of life more convenient.

NFC operating modes: Card emulation, Read/Write, P2P (Peer to Peer)
RF protocols supported: FeliCa PCD mode, MIFARE PCD encryption mechanism, NFC Forum tag 1 to 4, ISO/IEC 15693/ICODE VCD mode

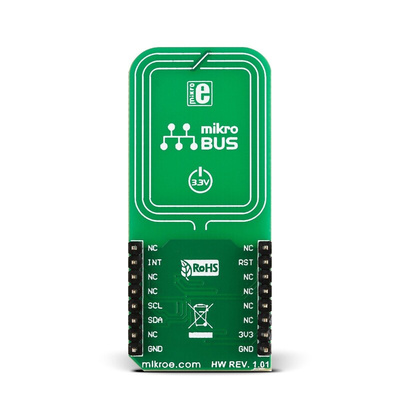

NFC antenna on-board
I²C bus interface
3.3 V power supply
Dimensions 57.15 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

NFC click Datasheet

PN7120, Full NFC Forum-compliant controller with integrated firmware and NCI interface
