MIKROE-2399, MikroElektronika BT Audio Click RN52 Bluetooth Audio mikroBus Click Board for Intercom Push-To-Talk Audio Connection,

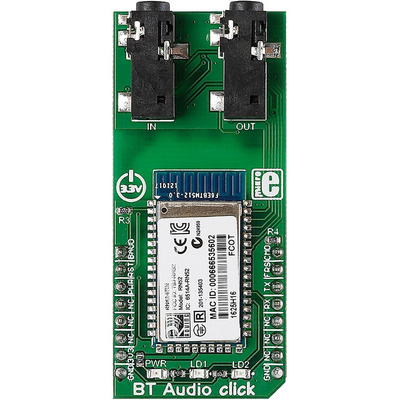

BT Audio click mikroBUS™

BT Audio click is a mikroBUS add-on board for delivering high-quality stereo digital audio in a compact design. The Microchip RN52 Bluetooth audio module on-board combines a Bluetooth radio class 2 with an embedded DSP processor.

Streaming Audio complete solution
Audio Codec support SBC, AAC, and aptX for CD-quality (16-bit / 44.1 kHz) audio stream
Embedded Bluetooth profiles HSP/HFP (Hands-Free and Headset), A2DP, AVRCP and SPP
Supports iAP profile discovery for connecting to Apple devices
3.5 mm connector jacks for microphone and speaker
Integrated Amplifier for driving 16 Ω Speakers
Up to 10 meters range in open space
Programmed and Controlled module with a simple ASCII command set
UART interface
3.3 V power supply on mikroBUS socket

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

BT Audio click Datasheet

RN52, Bluetooth Audio Module
