MIKROE-2462, MikroElektronika NFC Tag 2 Click, Arduino Compatible Board

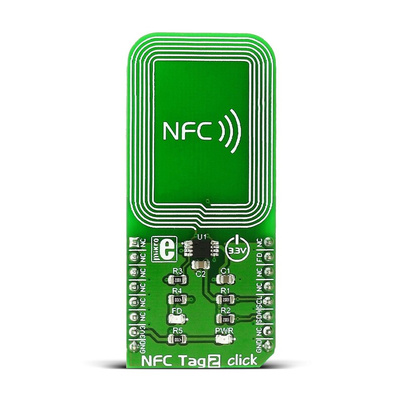

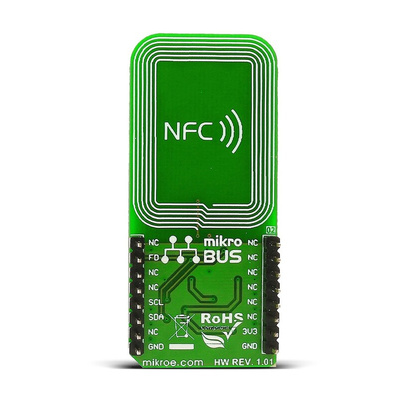

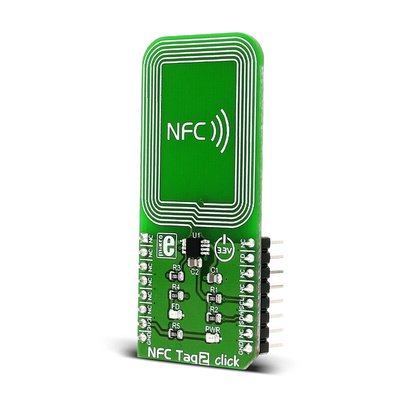

NFC Tag 2 click mikroBUS™

The NFC Tag 2 click is an add-on board that carries the NXP NT3H1101, NTAG I²C, Energy harvesting \nNFC Forum Type 2 Tag with field detection pin and I²C interface. The tap-and-go nature of Near \nField Communication (NFC) contactless transmission of data makes many aspects of life more convenient.

NFC Forum Type 2 Tag compliant
Field Detection output (FD) LED is turned ON when an NFC field is detected
Data transfer of 106 kbps
I²C bus interface
3.3 V power supply
Dimensions 57.15 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

mikroBUS Socket Standard Specifications

NFC Tag 2 click Datasheet

NT3H1101/NT3H1201, NTAG I2C - Energy harvesting NFC Forum Type 2 Tag with field detection pin and I2C interface
