MIKROE-2521, MikroElektronika EnOcean 2 Click TCM 515Z RF Transceiver mikroBus Click Board for Incorporate Battery-Free Wireless

EnOcean 2 click mikroBUS™

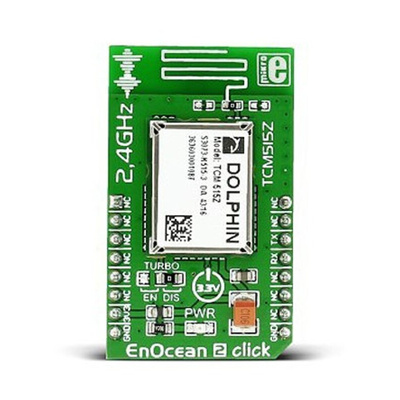

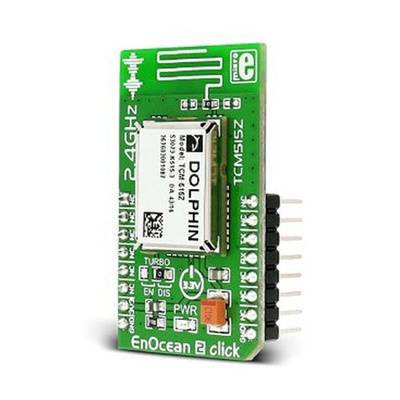

EnOcean 2 click is a mikroBUS add-on board for providing 2.4 GHz RF transceiver on IEEE 802.15.4 Low-Rate Wireless Personal Area Networks (WPAN) standard for ZigBee systems. It features the EnOcean TCM 515Z, 2.4 GHz IEEE 802.15.4 Transceiver.

ESP3 (EnOcean Serial Protocol) data format communication
Point-to-Point protocol interface
Packet data transfer of 65535 Bytes maximum
Chip antenna on-board
UART interface on mikroBUS socket
3.3 V power supply on mikroBUS socket
Dimensions 57.15 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Wireless Communication Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

EnOcean 2 Click Board Schematic

mikroBUS Socket Standard Specifications

TCM 515Z, 2.4GHZ IEEE 802.15.4 Transceiver
