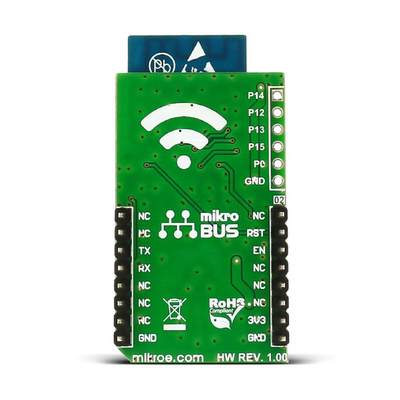

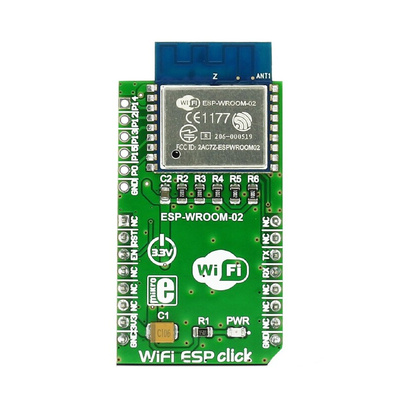

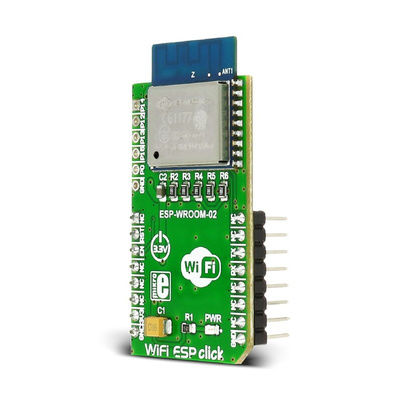

WiFi ESP click mikroBUS™
WiFi ESP click is a mikroBUS add-on board for providing a fully integrated 2.4 GHz 802.11 b/g/n transceiver for low-power wireless TCP/IP connectivity. The ESP-WROOM-02 module integrates the ESP8266EX WiFi System-on-Chip with 32-bit microcontroller and ultra-low-power 16-bit RSIC.
Supports IPv4, TCP/UDP/HTTP/FTP network protocols
WPA/WPA2 Security, WEP/TKIP/AES Encryption
Internal SRAM and ROM (ESP8266EX)
2 MBit SPI Flash Memory
UART interface on mikroBUS socket
PCB Antenna
3.3 V power supply on mikroBUS socket
Note
Click board comes with the header strips soldered.
Click mikroBUS™ Wireless Communication Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
WiFi ESP Click Board User schematicmikroBUS Socket Standard SpecificationsESP-WROOM-02 Module Data Sheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
