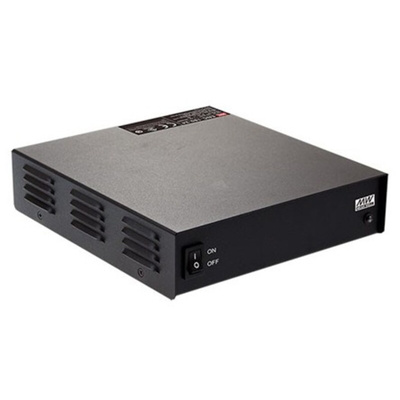

ENP-120-12, MEAN WELL 120W Power Brick AC/DC Adapter 13.8V dc Output, 0 → 8.7A Output, Блок питания

Mean Well ENP-120 Series Desktop Power Supply

From Mean Well, the ENP-120 series of desktop power supplies have a standard 7" width for use in the mobile radio field. With a rated output of 120 W and a rugged design, this series also provides the most frequently used voltages within communication applications. ENP-120 desktop power supplies operate between -30°C and +70°C and are cooled by free air convection.

Features and Benefits:

Universal AC input and full range
High efficiency circuitry
Overload, overvoltage, overtemperature and short circuit protection
No load power consumption under 0.15 W
Built in power faction correction function
125% peak load capability
Fanless design
VI Level energy efficiency
Efficiency between 89.5% and 91.5% (depending on model)
Compliant with EISA 2007/DoE, NRCan and EU ErP

Product Applications:

These desktop power supplies are designed for communication-related applications. Suitable applications include TV antenna facilities, surveillance systems, electric scooter charging and land mobile radio systems.

Standards

IEC60950-1, UL60950-1 approved
EMC Emission: Compliance to EN55022 (CISPR22) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B
EMC Immunity: Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024

ENP-120 Series Datasheet
