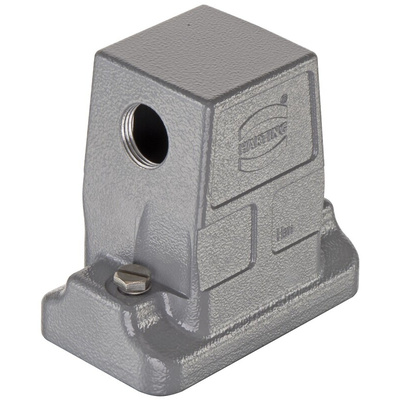

19396060546, Harting Hood, Han HP Direct B Thread Size 1.5 x M25, For Use With Han B Inserts

Harting Han HP Direct B Hoods

Han HP Direct B Hoods that are designed for use without the need for a bulkhead housing on the device side. These Han HP Direct B Hoods are a standard variant for use in industrial applications and can be used with all Han B inserts. The mounting flanges are compatible with standard Han B panel cut outs. The hoods are made from robust diecast aluminium and have IP66, IP68, IP69K protection to DIN EN 60529 in the locked position. These Han HP Direct B Hoods are available with straight and side cable entries from M20 to M40 and with a range of hood sizes. Mounting flanges (Harting part number 09 39 000 9902) and coding pins (Harting part number 09 39 000 9903) for these Han HP Direct B Hoods can be purchased separately.

Features and Benefits

• Can be used without bulkhead housings
• Standard variant design for industrial applications
• Mounting flanges compatible with standard Han B panel cut outs
• Robust diecast aluminium design
• IP66, IP68 and IP69K rated
• Straight and side cable entries
• M20 to M40 cable sizes
• Size 6, 10, 16 and 24B hoods
• Temperature range from -40 to +125°C

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han 6HP Direct/B M25 Hood - Line Drawing

Han HP Direct B Hoods - Catalogue Page
