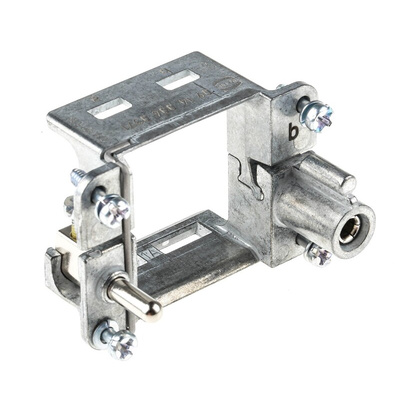

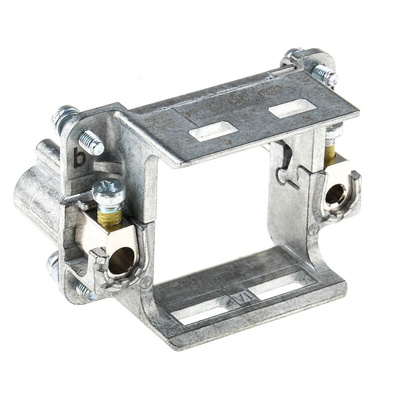

09140060371, Harting Hinged Frame, Han-Modular Series , For Use With Han Modular 2 Module a-b

Harting Han-Modular Hinged Frames

Han-Modular hinged frames designed for use with more than 100 different modules within the Han-Modular interconnect system. Assembly is quick and easy with an audible click produced to confirm a secure fitting. Modules can be assembled and removed without the need for tooling. These Han-Modular hinged frames have a robust mechanical design and are made from diecast zinc and stainless steel. Two leading PE contacts are featured within the structure of the frame. These Han-Modular hinged frames are available in different configurations to accept different numbers and sizes of modules

Features and Benefits

• For use with over 100 different modules
• Quick and easy assembly
• Audible click on correct fitting
• No special tooling required
• Robust mechanical design
• Two leading PE contacts
• Wide range of configurations

09140060371 Features:

Hinged frame plus
For 2 modules
Size 6 B
Conductor cross-section PE (power side) 4 - 10 mm²
Conductor cross-section PE (signal side) 1 - 2.5 mm²
Mating cycles≥ 500
Material - Zinc die-cast, Stainless steel

Approvals

DNV GL
UL 1977 ECBT2.E235076

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Han hinged frame plus, 2 modules - Line Drawing

Han hinged frame plus, 2 module - Catalogue Page

Datasheet - 09140060371
