10130006, Schroff Varistar 38U Server Cabinet 1800 x 600 x 800mm

VARISTAR Cabinet

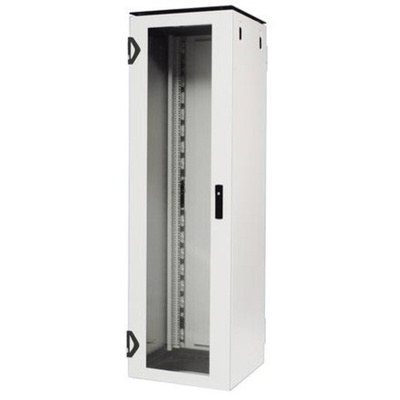

The Varistar is a floor standing cabinet with a glazed door and steel frame/cladding that can accommodate an 800 kg static load.

Features and Benefits

• Static load-carrying capacity 800 kg
• Doors with single point locking
• Side panels with quick release fastener
• Glazed front door
• IP20 or NEMA 1 protection
• RoHS compliant

Supplied with

1 x welded basic frame, slim‐Line, steel profile, zinc‐plated, powder‐coated, RAL 7021.
4 x adjustable foot, assembled.
1 x raised top cover, steel, RAL 7021, with 10 mm air gap all around.
1 x front door, glazed, safety glass, 6 mm, 180° hinge, RAL 7035, single point locking, key lock cover.
1 x rear door, steel, 180° hinge, RAL 7035, single point locking, key with lock.
2 x side panel, steel, quick‐release fastener with lock, RAL 7035.
2 x 19 in panel/slide mount with EIA cut‐outs, steel, RAL 7035, assembled at front, depth‐adjustable in 25 mm increments.
1 x ground/earthing kit, enclosed loose.
