60118434, nVent-SCHROFF Distribution Box Box for use with 19-Inch Cabinet, 3U

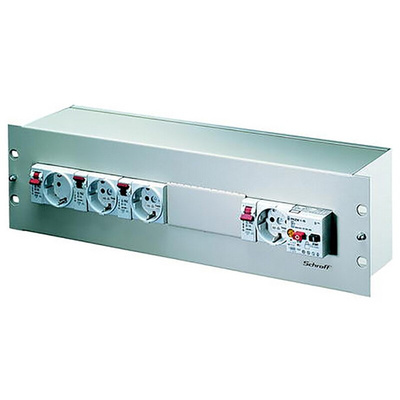

Schroff 19-Inch Distribution Box

Features and Benefits

• For installation of power distribution modules on DIN profile rails (DIN 43880)
• With cable support rail at rear, strain relief with clamps
• Two neutral conductors for terminal clamps from 4 to 35 mm²
• RoHS compliant

Supplied with

1 x case, 2 parts, 3 U/84 HP, aluminium zinc
1 x front panel with cut‐out for power distribution module, steel, 1 mm, RAL 7035.
2 x neutral conductors for terminal clamps, copper, 200 x 3 x 10 mm, zinc‐plated, insulated mounting.
1 x DIN profile rail, steel, zinc‐plated, depth‐adjustable with spacing bolts.
1 x cable support rail for clamps, zinc‐plated.
1 x brush strip, plastic, black, for cable entry.
2 x sealing strip, fibreglass reinforced polyester, for unused module positions.
1 x GND/earthing conductor, copper, 1.5 mm², green/yellow, length 360 mm.
1 x label strip.
