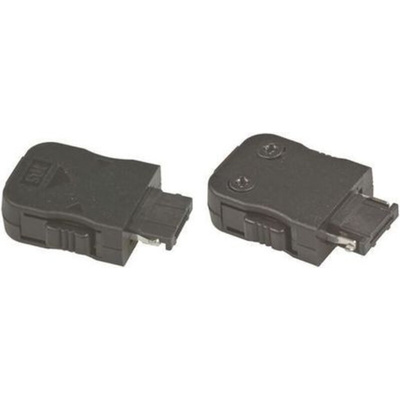

ST40X-24S-CV(30), Hirose, ST Telecom Connector Plug, Разъем

ST Series Plug

The Hirose ST40X series of PCB mount plugs are designed as Input/output (I/O) connectors for small portable devices. The robust connectors feature a strong locking mechanism assuring connection reliability when mated. ST40X plugs also incorporate multiple polarisation keys preventing incorrect insertion of the plug to its mating half.

Features and Benefits

• Plugs with female contact
• Standard type for top PCB mount
• Black thermoplastic insulator, UL94V-0
• Compact size, saving valuable board space
• Polarisation keys, preventing angled or reverse insertion
• Strong locking mechanism, ensuring reliable connection

Applications

• Mobile phones
• Notebook computers
• Digital cameras
• PDA devices (Personal Digital Assistance)

Hirose ST Series Interface Connectors

• External input/output connector
• Strong locking mechanism
• Polarisation keys prevents reversed or angle insertion
• Built-in ground continuity features and EMI shielding

ST40X I/O Plug 24-pin with shield datasheet
